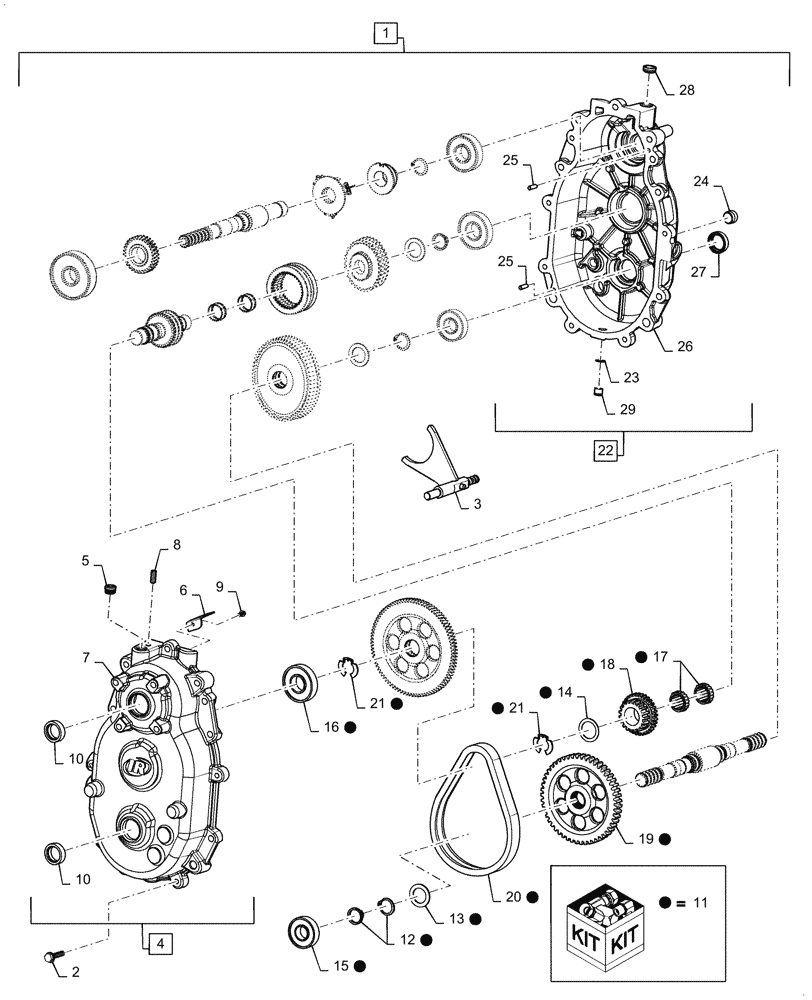

Запчасти Case IH SCOUT XL (21.100.02[01]) - TRANSMISSION (BEFORE SEPT 14 2011) (21) - TRANSMISSION

1

CLC102943201

TRANSMISSION

Assy, Incl 2 - 29

1шт.

2

CLC102693301

SCREW

11шт.

3

CLC102697801

CLUTCH FORK

1шт.

4

CLC102764201

CASE

Rear, Incl 5 - 10

1шт.

5

CLC102694201

PLUG

1шт.

6

NSS

NOT SOLD SEPARAT

Deflector, Incl in 4

1шт.

7

NSS

NOT SOLD SEPARAT

Rear, Gearcase, Incl in 1, 4

1шт.

8

NSS

NOT SOLD SEPARAT

Vent

1шт.

9

CLC102698901

SCREW

1шт.

10

CLC102699401

SEAL

2шт.

11

CLC102765201

REPAIR KIT

Reverse Gear, Incl 12 - 21

1шт.

12

CLC102696201

RING

Basic External

2шт.

13

CLC102696501

THRUST WASHER

1шт.

14

CLC102696701

WASHER

1шт.

15

CLC102696801

BALL BEARING

1шт.

16

CLC102696901

BALL BEARING

1шт.

17

CLC102697101

NEEDLE BEARING

2шт.

18

NSS

NOT SOLD SEPARAT

Sprocket, 19T, Incl in 1, 11

1шт.

19

NSS

NOT SOLD SEPARAT

Sprocket, 51T, Incl in 1, 11

1шт.

20

NSS

NOT SOLD SEPARAT

Chain, 60mm Pitch

1шт.

21

CLC102699701

RING

2шт.

22

CLC103250301

CASE

Front, Incl 23 - 29

1шт.

23

CLC102693501

WASHER

1шт.

24

CLC102694201

PLUG

1шт.

25

CLC102696101

PIN

2шт.

26

NSS

NOT SOLD SEPARAT

Front Gearcase, Incl in 1, 22

1шт.

27

CLC102699401

SEAL

1шт.

28

CLC102721501

SEAL

1шт.

Plug For Seal CLC102699501

1шт.

29

CLC103250401

PLUG

1шт.
