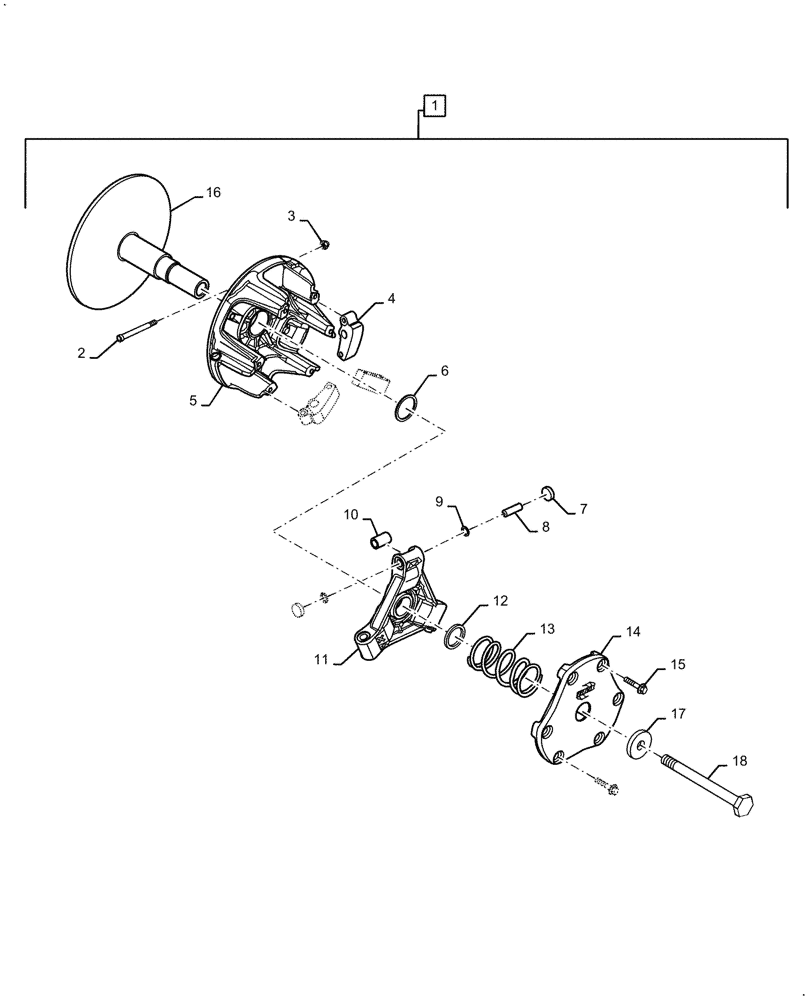

Запчасти Case IH SCOUT XL (18.110.050[02]) - DRIVE CLUTCH & DISC ASSY (AFTER JAN 31 2011) (18) - CLUTCH

1

CLC103857901

SERVICE KIT

CVT, Service Kit, Incl 2 - 16

1шт.

Diesel Engine

1шт.

1

CLC103857801

SERVICE KIT

CVT, Clutch, Incl 2 - 16

1шт.

Gas Engine

1шт.

2

CLC103829701

SCREW

1/4" x 1/4" L

3шт.

3

CLC103829601

LOCK NUT

M10 - 24

3шт.

4

CLC103829901

WEIGHT

Clutch

3шт.

5

NSS

NOT SOLD SEPARAT

Clutch Sub Assy, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Shim, 1.63" OD x 1.33" Thk, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Button, Incl in 1

6шт.

8

NSS

NOT SOLD SEPARAT

Dowel Pin, 0.375" OD x 1.375" L

3шт.

9

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

6шт.

10

NSS

NOT SOLD SEPARAT

Weight Roller, Incl in 1

3шт.

11

NSS

NOT SOLD SEPARAT

Clutch Spider, Incl in 1

1шт.

12

CLC103830001

SPACER

1.125" ID x 1.44" OD x 0.15" Thk

1шт.

13

CLC103856101

COMPRESSION SPRING

Drive Clutch

1шт.

Gas Engine

1шт.

13

CLC103829501

COMPRESSION SPRING

Drive Clutch

1шт.

Diesel Engine

1шт.

14

NSS

NOT SOLD SEPARAT

Clutch Cover, Incl in 1

1шт.

15

CLC103829801

SCREW

1/4" - 20 x 1-1/4" L

6шт.

16

NSS

NOT SOLD SEPARAT

Drive Clutch Assy, Incl in 1

1шт.

17

CLC103856501

WASHER

1шт.

Gas Engine

1шт.

17

CLC102385601

WASHER

1шт.

Diesel Engine

1шт.

18

CLC103201501

BOLT

M8 x 1.25 x 200mm

1шт.

Gas Engine

1шт.

18

CLC103884001

BOLT

M10 x 1.5 x 170mm

1шт.
