(10.408.01) - COOLING SYSTEM CLAMPS, HOSES, AND HARDWARE - DIESEL ENGINE

Запчасти Case IH SCOUT XL (10.408.01) - COOLING SYSTEM CLAMPS, HOSES, AND HARDWARE - DIESEL ENGINE (10) - ENGINE

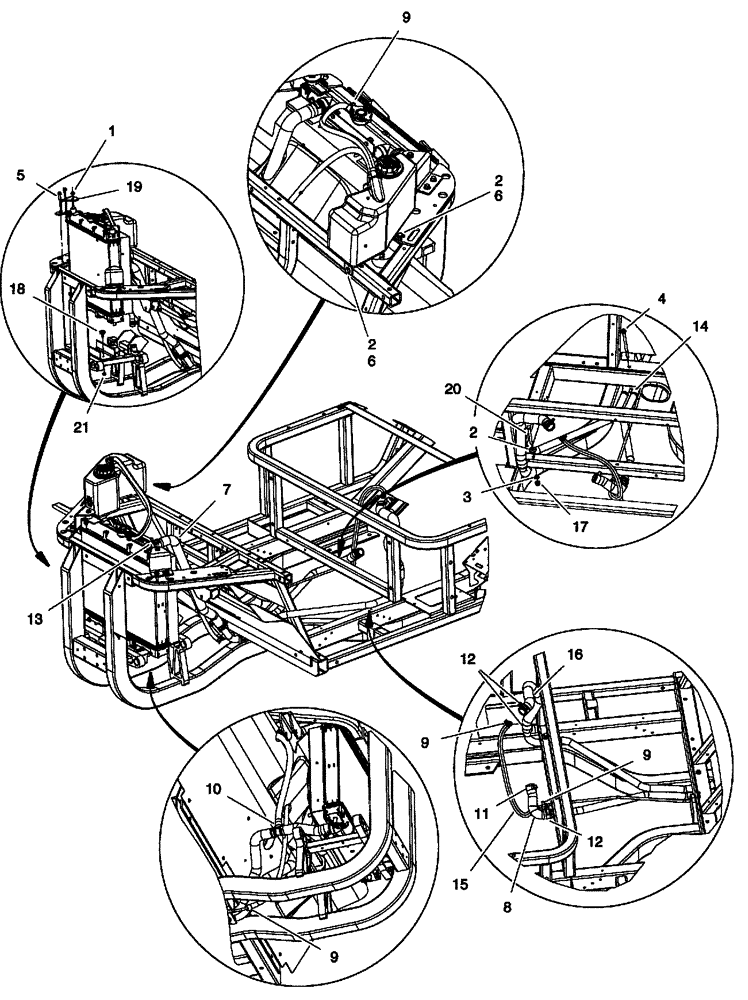

Схема запчастей Case IH SCOUT XL - (10.408.01) - COOLING SYSTEM CLAMPS, HOSES, AND HARDWARE - DIESEL ENGINE (10) - ENGINE
16
15
11
17
6
7
19
18
2
2
21
9
9
13
5
14
20
9
2
12
1
6
3
12
10
4
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC96704416

SERRATED NUT

2шт.

2

CLC1011578

WASHER

3шт.

3

CLC1015457

SPACER

1шт.

4

CLC102288901

BOLT

1шт.

5

CLC102289001

SCREW

4шт.

6

CLC102298720

BOLT

2шт.

7

CLC102377501

RADIATOR HOSE

Coolant Upper

1шт.

8

CLC102377601

HOSE

Coolant Lower Engine

1шт.

9

CLC102411204

CLAMP

4шт.

10

CLC102411205

CLAMP

1шт.

11

CLC102411206

CLAMP

1шт.

12

CLC102411207

CLAMP

5шт.

13

CLC102411208

CLAMP

1шт.

14

CLC102427601

CLAMP

Bar

1шт.

15

CLC102435001

HOSE

Vent Tube To Engine, Coolant

1шт.

16

CLC102480501

HOSE

Coolant, Return, Engine

1шт.

17

CLC102618601

LOCK NUT

3шт.

18

CLC102684901

STUD

2шт.

19

CLC102946701

BRACKET, SUPPORTING

Radiator

2шт.

20

CLC103423701

BOLT

1шт.

21

CLC96704176

SERRATED NUT

2шт.
