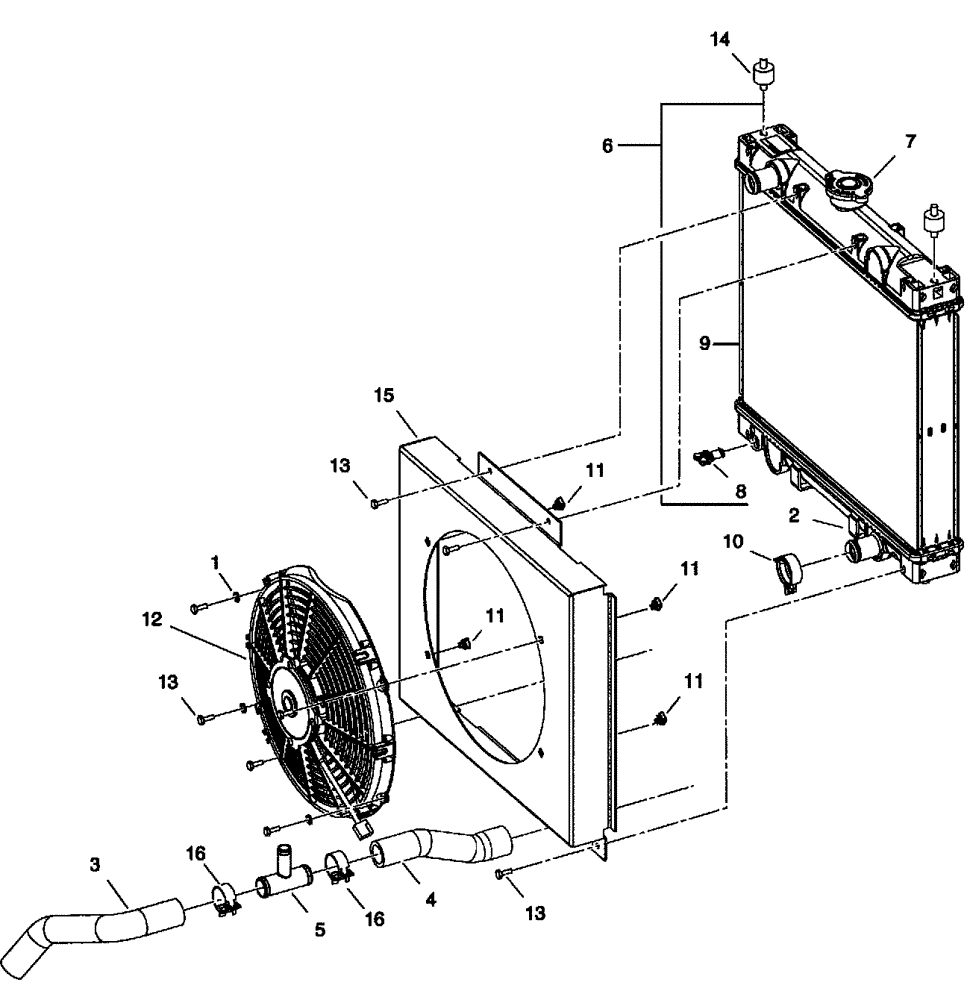

Запчасти Case IH SCOUT XL (10.406.02) - RADIATOR - DIESEL ENGINE (10) - ENGINE

1

CLC96705199

WASHER

4шт.

2

CLC1014471

TAPE

1шт.

3

CLC102377801

HOSE

Coolant Lower

1шт.

4

CLC102377901

RADIATOR HOSE

Coolant Lower

1шт.

5

CLC102380301

TEE

Coolant Fill

1шт.

6

CLC102410301

HEAT EXCHANGER

Engine Coolant, Inc. 7 and 8

1шт.

7

CLC102737301

RADIATOR CAP

1шт.

8

CLC102737401

SHUT-OFF VALVE

Radiator

1шт.

9

NSS

NOT SOLD SEPARAT

RADIATOR

1шт.

10

CLC102411208

CLAMP

1шт.

11

CLC102411301

NUT

4шт.

12

CLC102436701

FAN

1шт.

13

CLC102490301

BOLT

8шт.

14

CLC102685001

STUD

Twin-Stud

2шт.

15

CLC102855501

SHROUD

Radiator Fan

1шт.

16

CLC102411207

CLAMP

2шт.
