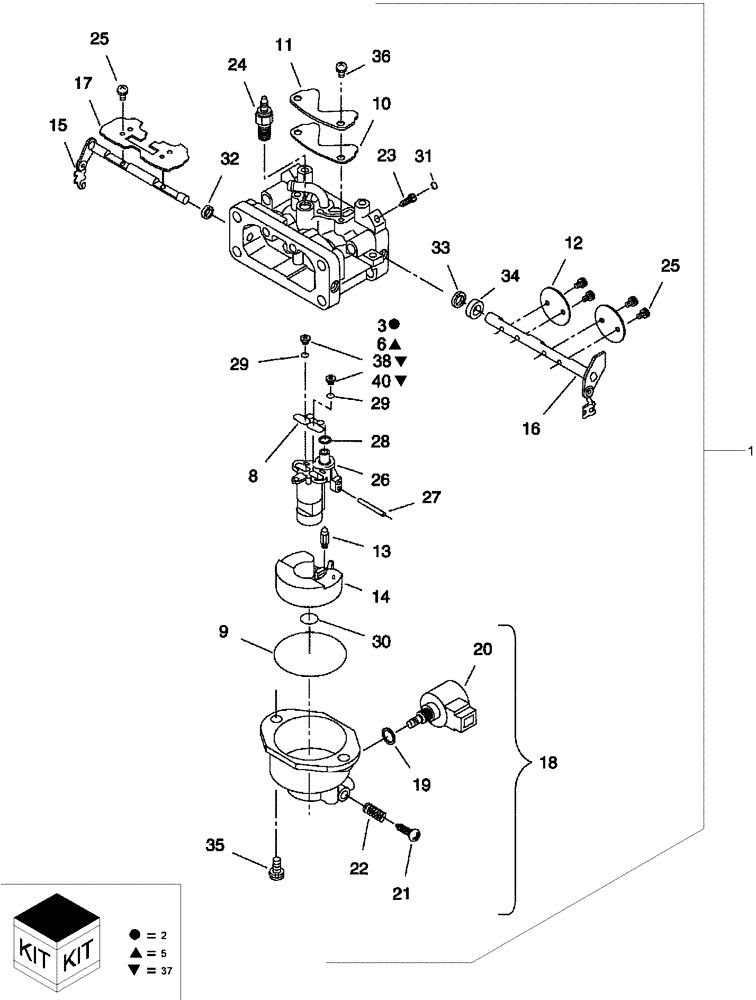

Запчасти Case IH SCOUT XL (10.236.02) - CARBURETOR ASSEMBLY, GASOLINE ENGINE (10) - ENGINE

1

CLC103596801

CARBURETOR

Inc. 2-37

1шт.

2

CLC103307201

DIA KIT, ADD PROD

Jet, 6600 ft +, Inc. 3, 4

1шт.

3

CLC103306801

JET

2шт.

4

CLC103307101

INSTRUCTION

Instruction, (Not Shown)

1шт.

5

CLC103307301

DIA KIT, ADD PROD

Jet, 3300-6600 ft, Inc. 6, 7

1шт.

6

CLC103306901

JET

2шт.

7

CLC103307101

INSTRUCTION

Instruction, (Not Shown)

1шт.

8

CLC103340601

GASKET

1шт.

9

CLC103340701

GASKET

Carburetor

1шт.

10

CLC103340801

GASKET

Cover

1шт.

11

CLC103340901

COVER

Slow Passage

1шт.

12

CLC103341101

VALVE

Throttle

2шт.

13

CLC103341201

VALVE

Float

1шт.

14

CLC103341301

FLOAT

Carburetor

1шт.

15

CLC103341401

SHAFT

Carburetor

1шт.

16

CLC103341501

SHAFT

Carburetor, Throttle

1шт.

17

CLC103341601

VALVE

Carburetor

1шт.

18

CLC103341701

CHAMBER

1шт.

19

CLC103340501

GASKET

Carburetor

1шт.

20

CLC103341901

SOLENOID

Carburetor

1шт.

21

CLC103342201

SCREW

1шт.

22

CLC103343601

SPRING

1шт.

23

CLC103341801

NEEDLE

Jet

2шт.

24

CLC103342001

HEATER

Carburetor

1шт.

25

CLC103342101

SCREW

6шт.

26

CLC103342301

SPACER

1шт.

27

CLC103342401

PIN

1шт.

28

CLC103342501

O-RING

1шт.

29

CLC103342601

O-RING

2шт.

30

CLC103342701

O-RING

1шт.

31

CLC103343301

EXPANSION PLUG

Carburetor

2шт.

32

CLC103343401

SEAL

Carburetor

1шт.

33

CLC103343501

SEAL

Carburetor

1шт.

34

CLC103343701

COLLAR

Carburetor

1шт.

35

CLC103343801

SCREW

2шт.

36

CLC103343901

SCREW

2шт.

37

CLC103596701

KIT

Jet, 0-3300 ft, Inc. 38-40

1шт.

38

CLC103307001

JET

1шт.

39

CLC103307101

INSTRUCTION

Instruction, (Not Shown)

1шт.

40

CLC103596601

JET

1шт.
