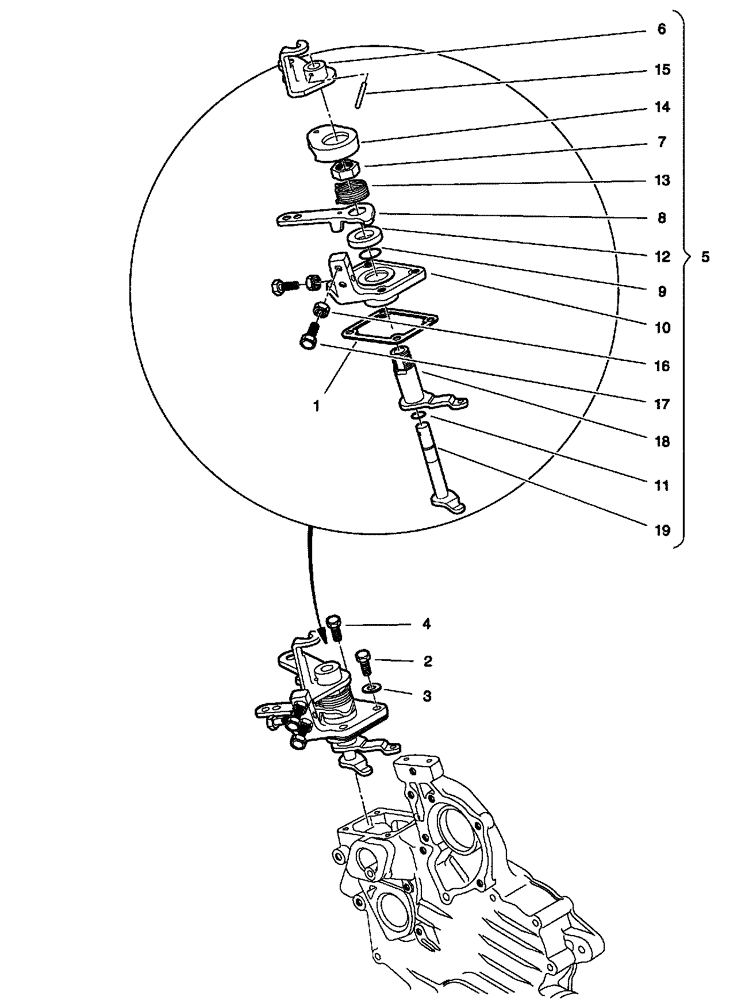

Запчасти Case IH SCOUT XL (10.220.04) - SPEED CONTROL PLATE - DIESEL ENGINE (10) - ENGINE

1

CLC102634501

GASKET

Control Plate

1шт.

2

CLC102635201

BOLT

2шт.

3

CLC102635301

GASKET

2шт.

4

CLC102654301

BOLT

Intake Manifold Lower

2шт.

5

CLC102800401

PLATE

Inc. 6-19

1шт.

6

CLC102633701

LEVER

Engine Stop

1шт.

7

CLC102633801

NUT

Speed Control

1шт.

8

CLC102633901

LEVER

Speed Control

1шт.

9

CLC102634001

O-RING

1шт.

10

CLC102634101

PLATE

Speed Control

1шт.

11

CLC102634401

O-RING

1шт.

12

CLC102634601

COLLAR

Lever

1шт.

13

CLC102634701

SPRING

Return

1шт.

14

CLC102729401

CAP

Speed Control Plate Return

1шт.

15

CLC102729501

PIN

Spring, Speed Plate

1шт.

16

NSS

NOT SOLD SEPARAT

NUT, Speed Control

2шт.

17

NSS

NOT SOLD SEPARAT

BOLT, Speed Control

2шт.

18

CLC102800501

LEVER

Governor

1шт.

19

CLC102800601

SHAFT

Governor Lever

1шт.
