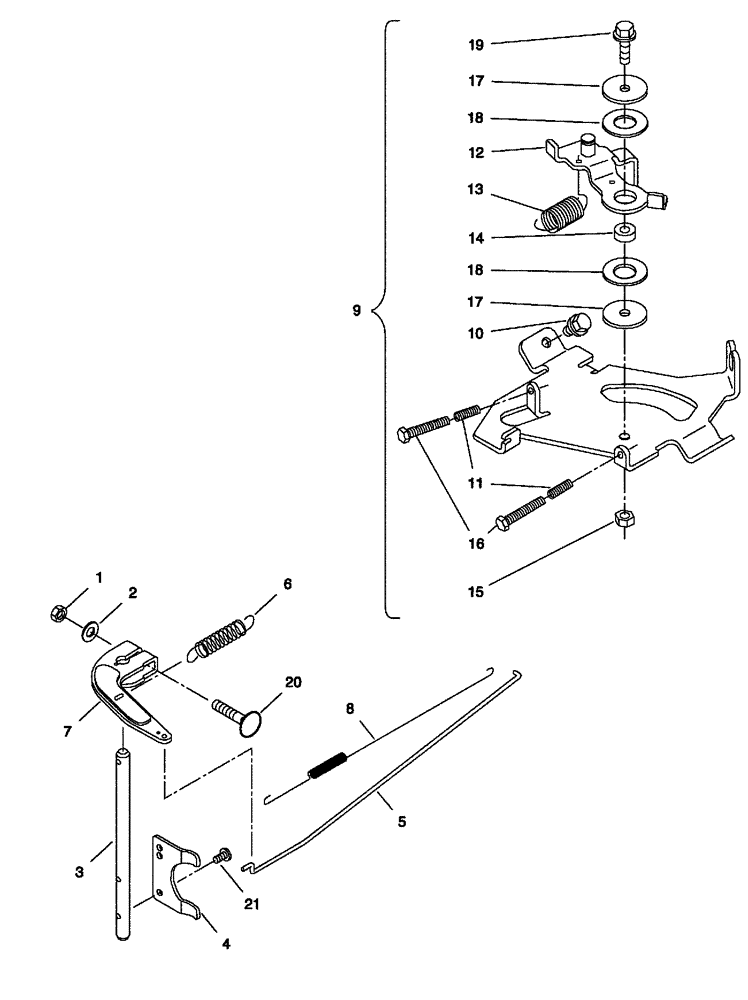

Запчасти Case IH SCOUT XL (10.220.03[01]) - GOVERNOR ARM AND SPRINGS - GASOLINE ENGINE (10) - ENGINE

1

CLC1012919

NUT

1шт.

2

CLC1016513

WASHER

1шт.

3

CLC103002001

SHAFT

Governor

1шт.

4

CLC103002101

PLATE

Governor

1шт.

5

CLC103002301

LINK

Governor

1шт.

6

CLC103002401

SPRING

Governor

1шт.

7

CLC103002501

ARM

Governor, Shaft

1шт.

8

CLC103002901

SPRING

Governor

1шт.

9

CLC103297701

PANEL

Inc. 10-19

1шт.

10

CLC102992401

FLANGE BOLT

2шт.

11

CLC103002801

SPRING

2шт.

12

CLC103297401

LEVER

Governor, Control

1шт.

13

CLC103297501

SPRING

Governor Return

1шт.

14

CLC103297601

COLLAR

Governor

1шт.

15

CLC103297801

NUT

Governor

1шт.

16

CLC103298001

NUT

Speed Control

2шт.

17

CLC103298201

WASHER

Governor, Lower

2шт.

18

CLC103298301

WASHER

Governor, Middle

2шт.

19

CLC103298501

FLANGE BOLT

1шт.

20

CLC103298101

NUT

1шт.

21

CLC103298601

SCREW

2шт.
