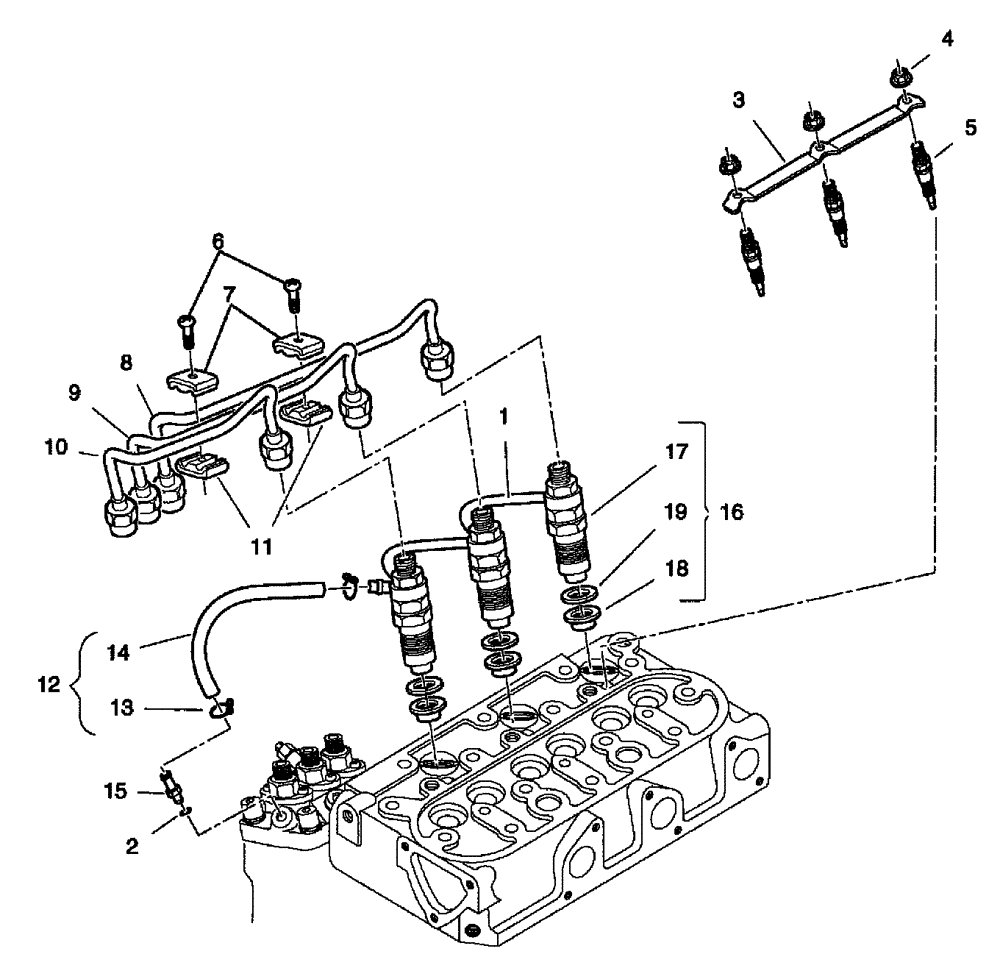

Запчасти Case IH SCOUT XL (10.218.01) - NOZZLE HOLDERS AND GLOW PLUGS - DIESEL ENGINE (10) - ENGINE

1

CLC102605701

PIPE

Fuel Over Flow

1шт.

2

CLC102635301

GASKET

1шт.

3

CLC102642401

GLOW PLUG

1шт.

4

CLC102642501

FLANGE NUT

3шт.

5

CLC102642601

GLOW PLUG

3шт.

6

CLC102642801

CAPTIVE WASHER SCREW

2шт.

7

CLC102642901

CLAMP

Pipe, Top

2шт.

8

CLC102643001

PIPE

Injection, Left

1шт.

9

CLC102643101

PIPE

Injection, Middle

1шт.

10

CLC102643201

PIPE

Injection, Right

1шт.

11

CLC102643301

CLAMP

Pipe, Bottom

2шт.

12

CLC102643401

PIPE

Over Flow, Inc. 13 and 14

1шт.

13

CLC102729601

CLIP

Pipe, Return

2шт.

14

NSS

NOT SOLD SEPARAT

HOSE, Overflow

1шт.

15

CLC102643701

BLEED SCREW

1шт.

16

CLC102729701

KIT

Holder, Nozzle, Inc. 17-19

3шт.

17

CLC102641501

NOZZLE HOLDER

3шт.

18

CLC102642701

SEAL

Heat

3шт.

19

CLC102643601

GASKET

Nozzle

3шт.
