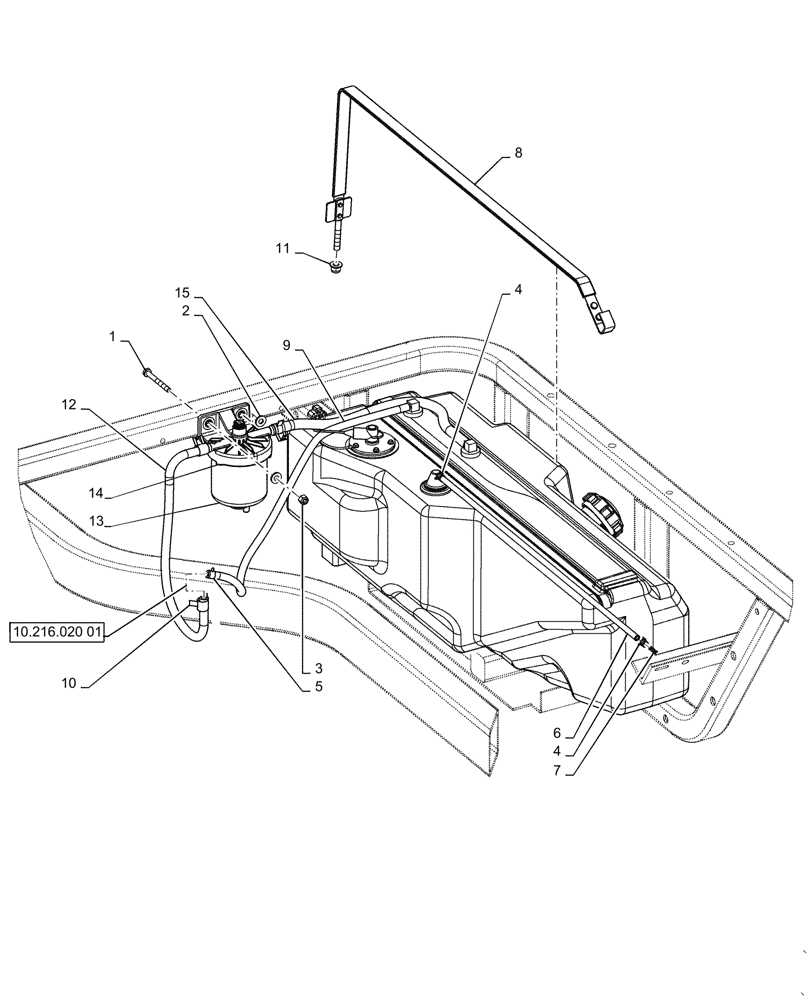

Запчасти Case IH SCOUT XL (10.216.020[02]) - FUEL SYSTEM W/ UPGRADE, DIESEL ENGINE (10) - ENGINE

1

CLC324

SCREW

Hex, 1/4" - 20 x 2-1/2" L

2шт.

2

CLC332

WASHER

1/4" ID

2шт.

3

CLC8233

LOCK NUT

1/4" - 20

2шт.

4

CLC1013746

HOSE CLAMP

2шт.

5

CLC101313402

CLAMP

1шт.

6

CLC101587703

FUEL HOSE

Vent, 22" L

1шт.

7

CLC101824401

ADAPTER

1шт.

8

CLC102426301

STRAP

Fuel Tank

1шт.

9

CLC102430401

HOSE

Fuel Return

1шт.

10

CLC102411203

CLAMP

3шт.

11

CLC102618601

LOCK NUT

M8 x 1.25

1шт.

12

CLC103593201

HOSE

Water Separator to Mech Fuel Pump

1шт.

13

CLC103761801

FUEL FILTER

1шт.

14

CLC103747301

FILTER ASSY

Diesel

1шт.

15

CLC103593301

HOSE

Water Separator to Fuel Tank

1шт.
