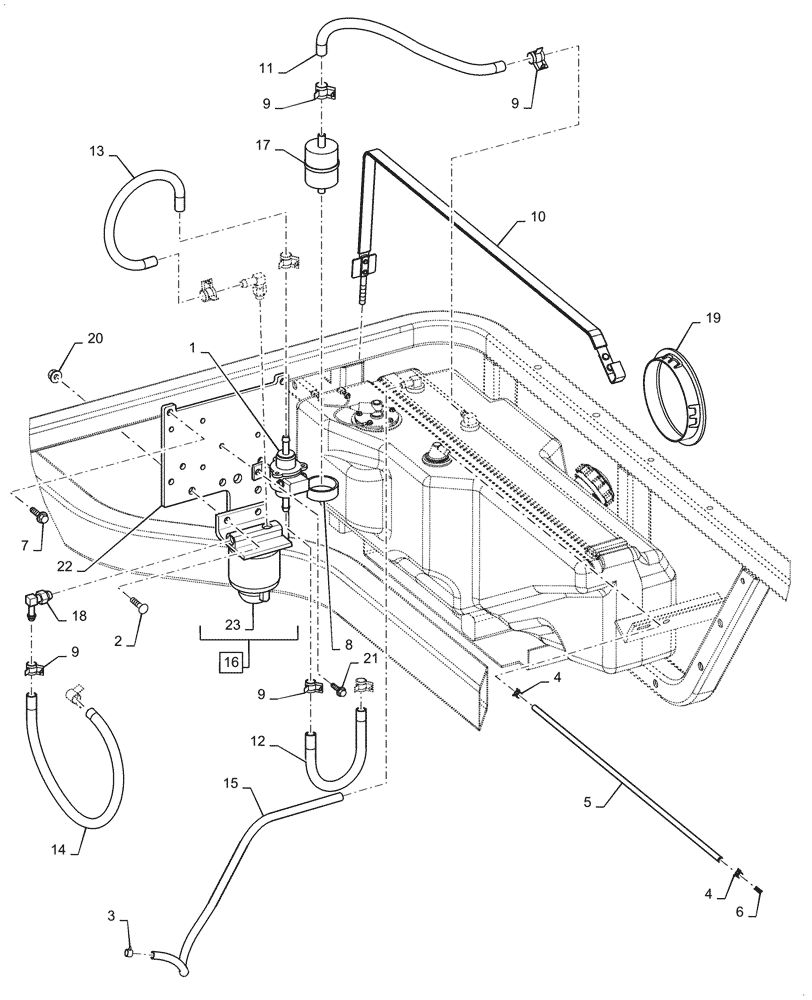

Запчасти Case IH SCOUT XL (10.216.020[01]) - FUEL SYSTEM, DIESEL ENGINE (10) - ENGINE

1

CLC103591301

FUEL PUMP

Diesel, Mechanical

1шт.

2

CLC96705587

BOLT

2шт.

3

CLC101313402

CLAMP

1шт.

4

CLC1013746

HOSE CLAMP

2шт.

5

CLC101587703

FUEL HOSE

Vent

1шт.

6

CLC101824401

ADAPTER

1шт.

7

CLC102289001

SCREW

5шт.

8

CLC102410602

CLAMP

1шт.

9

CLC102411203

CLAMP

6шт.

10

CLC102426301

STRAP

Tank, Fuel

1шт.

11

CLC102430001

HOSE

Tank to Prefilter Diesel

1шт.

12

CLC102430101

HOSE

Fuel Prefilter to Pump

1шт.

13

CLC102430201

HOSE

Fuel Pump to Filter

1шт.

14

CLC102430301

HOSE

Fuel Filter to Engine

1шт.

15

CLC102430401

HOSE

Fuel Return

1шт.

16

CLC102434601

FILTER ASSY

Fuel, Incl 23

1шт.

17

1701232C91

FILTER

1шт.

18

CLC102434801

ADAPTER

2шт.

19

CLC102466201

BEZEL

Fuel Fill

1шт.

20

CLC102618601

LOCK NUT

3шт.

21

CLC102670801

SCREW

1шт.

22

CLC102710301

PLATE

Fuel/Oil System

1шт.

23

CLC102703401

ELEMENT

Fuel Filter

1шт.
