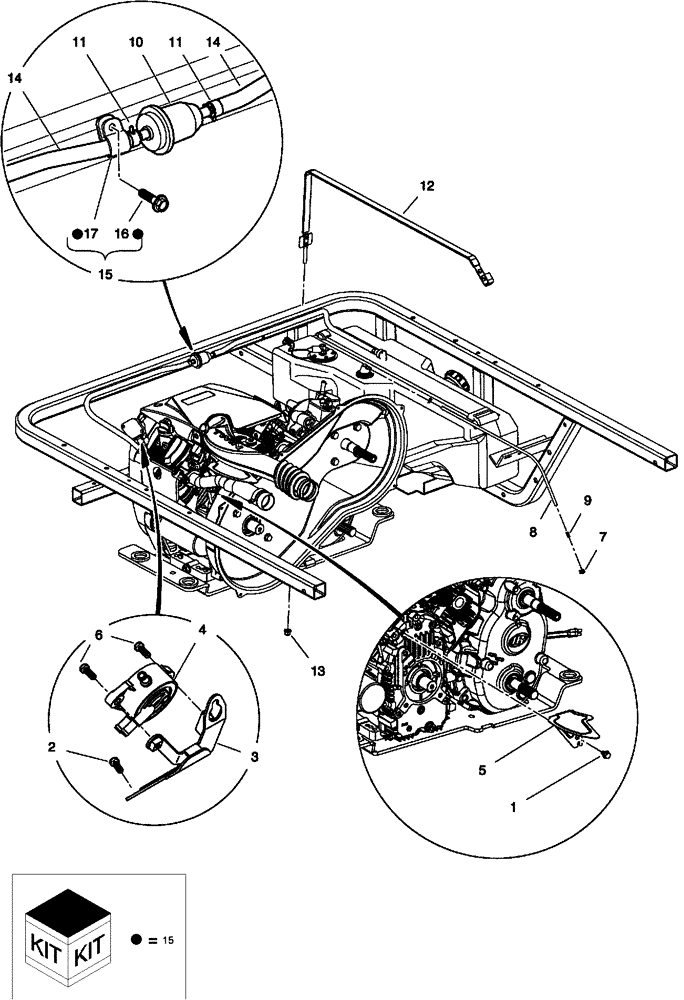

Запчасти Case IH SCOUT XL (10.216.010) - FUEL SYSTEM - GASOLINE ENGINE (10) - ENGINE

1

CLC102621201

BOLT

1шт.

2

CLC102992501

FLANGE BOLT

1шт.

3

CLC103009901

BRACKET, SUPPORTING

Fuel Pump

1шт.

4

CLC103010101

FUEL PUMP

Impulse

1шт.

5

CLC103262101

HEAT SHIELD

Header, Gas

1шт.

6

CLC103298501

FLANGE BOLT

2шт.

7

CLC1013746

HOSE CLAMP

2шт.

8

CLC101587703

FUEL HOSE

Vent

1шт.

9

CLC101824401

ADAPTER

1шт.

10

K0H2505022S

FUEL FILTER

1шт.

11

CLC102411202

CLAMP

4шт.

12

CLC102426301

STRAP

Tank, Fuel

1шт.

13

CLC102618601

LOCK NUT

1шт.

14

CLC102865101

FUEL HOSE

1шт.

15

CLC103387501

KIT

Fuel Line Clamp, Inc. 16, 17

1шт.

16

CLC102289001

SCREW

1шт.

17

NSS

NOT SOLD SEPARAT

P-CLAMP, Insulated 0.625 In

1шт.

18

CLC103010601

HOSE

Fuel Pump To Valve Cover (Not Shown)

1шт.
