Запчасти Case IH SCOUT XL (10.103.02[02]) - CRANKSHAFT - DIESEL ENGINE (10) - ENGINE

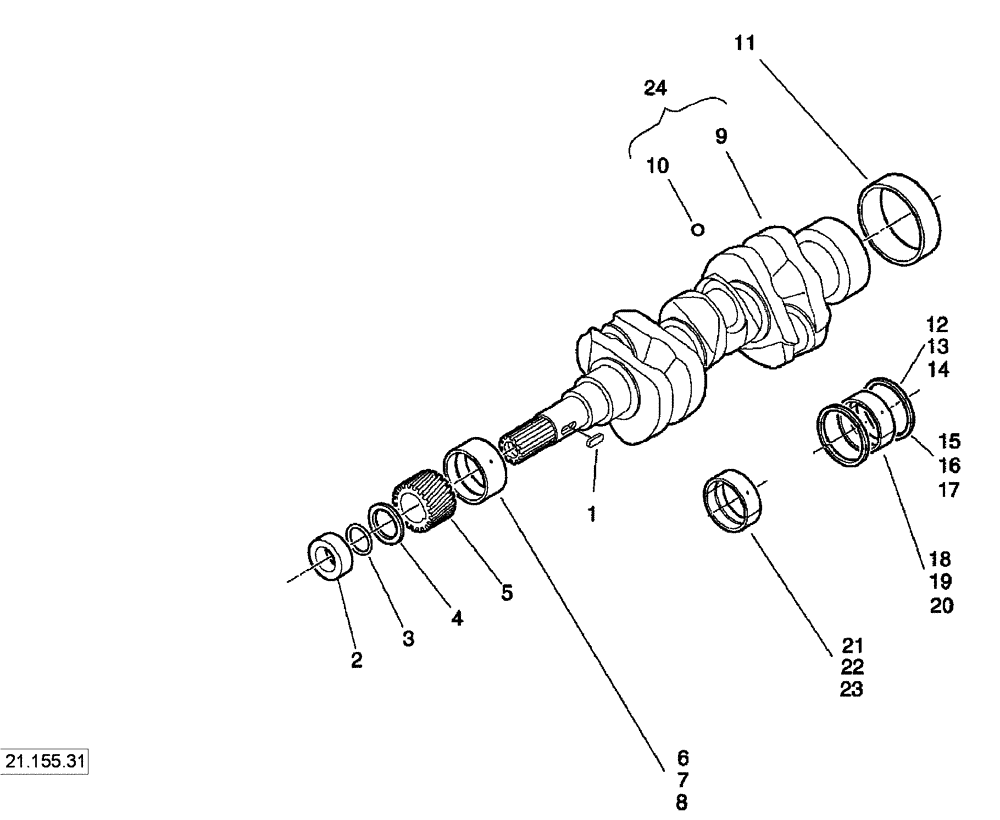

Схема запчастей Case IH SCOUT XL - (10.103.02[02]) - CRANKSHAFT - DIESEL ENGINE (10) - ENGINE
1
7
19
2
15
4
16
20
5
13
24
6
18
22
21
8
17
11
12
9
3
10
23
14

Артикул

Название

Примечание

Количество

1

CLC102604401

KEY

Camshaft

1шт.

2

CLC102630401

COLLAR

Crankshaft

1шт.

3

CLC102630301

O-RING

1шт.

4

CLC102630201

SLINGER

Oil

1шт.

5

CLC102630101

GEAR

Crank

1шт.

6

CLC102630003

CRANKSHAFT BEARING

Front, -.040

1шт.

7

CLC102630002

CRANKSHAFT BEARING

Front, -.020

1шт.

8

CLC102630001

CRANK

Front, Standard

1шт.

9

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

10

CLC102608001

BALL BEARING

Crankshaft

3шт.

11

CLC102608101

SLEEVE

Crankshaft

1шт.

12

CLC102608801

CRANK

O Side, Standard

2шт.

13

CLC102608802

CRANKSHAFT BEARING

O Side, +.020

2шт.

14

CLC102608803

CRANKSHAFT BEARING

O Side, +.040

2шт.

15

CLC102608804

CRANK

I Side, Standard

2шт.

16

CLC102608805

CRANKSHAFT BEARING

I Side, +.020

2шт.

17

CLC102608806

CRANKSHAFT BEARING

I Side, +.040

2шт.

18

CLC102609001

CRANK

Main, Rear Standard

1шт.

19

CLC102609002

CRANKSHAFT BEARING

Main, Rear -.020

1шт.

20

NSS

NOT SOLD SEPARAT

CRANK, Main, Rear - .040

1шт.

21

CLC102609801

CRANK

Main, Mid Standard

4шт.

22

CLC102609802

CRANKSHAFT BEARING

Main, Mid +.020

2шт.

23

CLC102609803

CRANKSHAFT BEARING

Main, Mid +.040

2шт.

24

CLC102610001

CRANKSHAFT

Inc. 9, 10

1шт.

Выбрано товаров: 24
