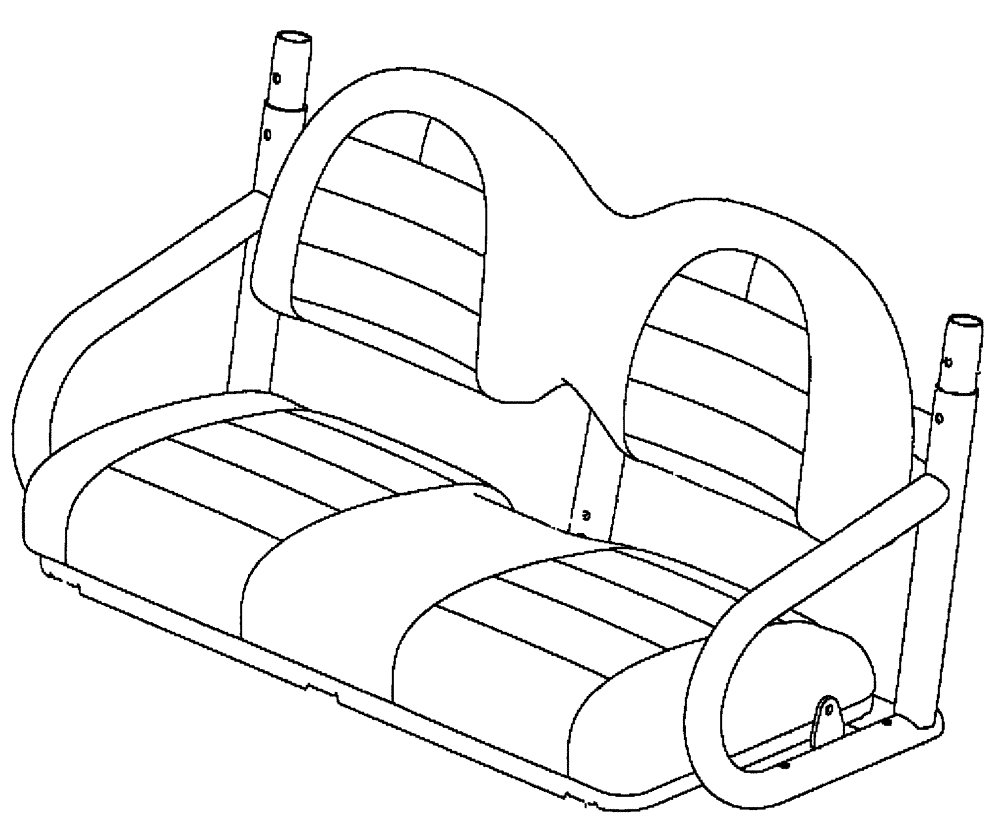

Запчасти Case IH SCOUT XL (90.120.03) - REAR FACING SEAT WITH ROPS AND SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NSS

NOT SOLD SEPARAT

SEAT SUPPORT, ROPS, Rear Seat (Not Shown)

1шт.

2

NSS

NOT SOLD SEPARAT

SEAT SUPPORT, Seat, Rear (Not Shown)

1шт.

3

CLC102491501

WASHER

(Not Shown)

4шт.

4

CLC103216401

FLANGE NUT

(Not Shown)

4шт.

5

CLC102718101

WASHER

(Not Shown)

8шт.

6

CLC102491302

BOLT

(Not Shown)

4шт.

7

NSS

NOT SOLD SEPARAT

PLUG (Not Shown)

2шт.

8

NSS

NOT SOLD SEPARAT

TAPE (Not Shown)

1шт.

9

CLC102725801

FOAM INSULATION

Heat, Bed, Front (Not Shown)

1шт.

10

CLC102725901

FOAM INSULATION

Heat, Bed, Rail (Not Shown)

1шт.

11

CLC102879201

SEAT

Bottom, Bench, Gray (Not Shown)

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW (Not Shown)

2шт.

13

CLC102541425

BOLT

(Not Shown)

1шт.

14

NSS

NOT SOLD SEPARAT

STRAP, Elastic (Not Shown)

3шт.

15

CLC103456001

SEAT BACK

Bench, Gray (Not Shown)

1шт.

16

CLC103580301

CAP

Seatback, One Piece (Not Shown)

1шт.

17

CLC1011697

WASHER

(Not Shown)

3шт.

18

CLC1014201

SCREW

(Not Shown)

3шт.

19

CLC103637401

SPACER

(Not Shown)

3шт.

20

CLC1014415

SCREW

(Not Shown)

4шт.

21

CLC102759901

BRACKET

Seat Belt, Bench (Not Shown)

1шт.

22

CLC102732401

BOLT

(Not Shown)

2шт.

23

CLC103216401

FLANGE NUT

(Not Shown)

2шт.

24

CLC1010193

WASHER

(Not Shown)

4шт.

25

CLC1014557

WASHER

(Not Shown)

2шт.

26

CLC102620301

NUT

(Not Shown)

2шт.

27

CLC103245101

FLANGE BOLT

(Not Shown)

2шт.

28

CLC103529601

BOLT

(Not Shown)

2шт.

29

CLC103529701

SEAT BELT

Buckle (Not Shown)

2шт.

30

CLC103529801

SEAT BELT

Retractor (Not Shown)

2шт.

31

CLC103530701

SPRING WASHER

(Not Shown)

2шт.

32

CLC103534201

LOCK NUT

(Not Shown)

2шт.

33

NSS

NOT SOLD SEPARAT

BRACKET, Rear Footwell, ROPS (Not Shown)

2шт.

34

NSS

NOT SOLD SEPARAT

SCREW, Flat Head (Not Shown)

2шт.

35

CLC7818

BOLT

(Not Shown)

2шт.

36

CLC1241

WASHER

(Not Shown)

2шт.

37

CLC7473

LOCK NUT

(Not Shown)

2шт.

38

CLC8754

LOCK NUT

(Not Shown)

2шт.

39

CLC1011990

WASHER

(Not Shown)

2шт.

40

NSS

NOT SOLD SEPARAT

PIPE, Muffler Extension (Not Shown)

1шт.

41

CLC101609401

WARNING DECAL

Crush Area (Not Shown)

2шт.

42

CLC103205401

WARNING DECAL

Rollover (Not Shown)

1шт.
