Запчасти Case IH SCOUT XL (90.120.02) - BUCKET SEATS (90) - PLATFORM, CAB, BODYWORK AND DECALS

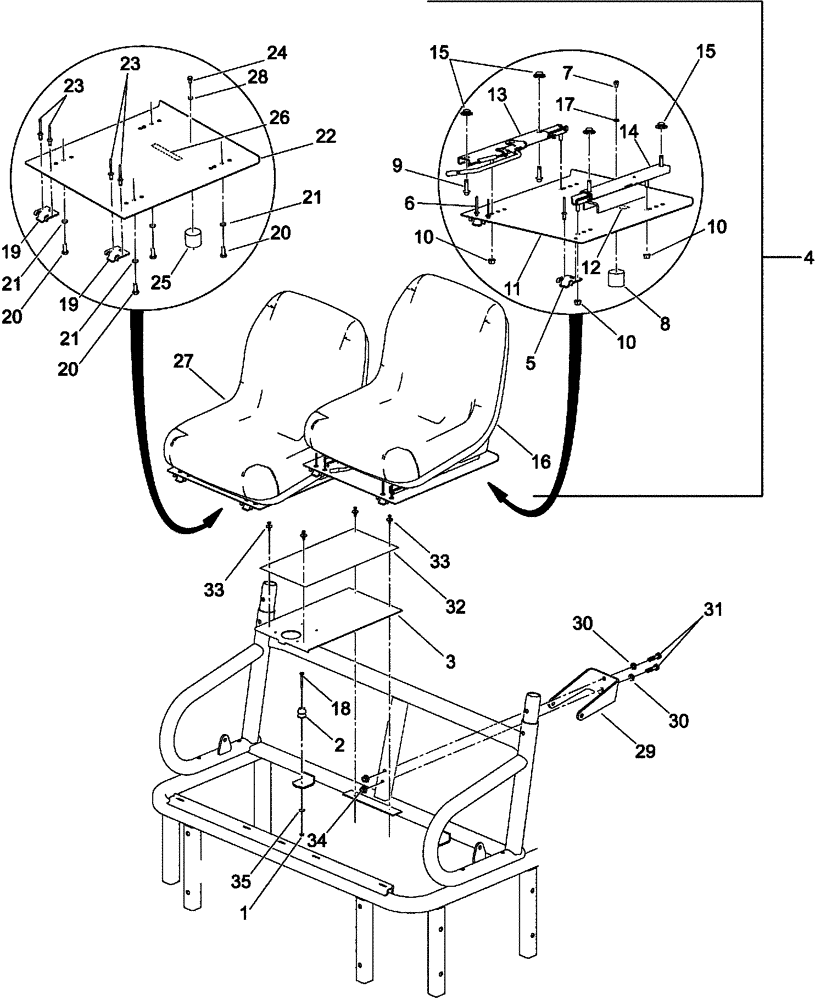

Схема запчастей Case IH SCOUT XL - (90.120.02) - BUCKET SEATS (90) - PLATFORM, CAB, BODYWORK AND DECALS
32
10
28
17
35
6
12
19
28
23
16
15
30
26
23
21
14
7
10
5
9
20
4
30
11
20
10
22
21
3
13
29
2
34
25
27
19
33
1
21
24
8
31
33
18
20

Артикул

Название

Примечание

Количество

1

CLC101887601

LOCK NUT

2шт.

2

CLC102059001

BASE

2шт.

3

CLC102442001

PAN

Center, Closeout

1шт.

4

CLC102473701

SEAT

Inc. 5-17

1шт.

4

CLC102473703

SEAT

Bucket, Wheat, Left Hand, Inc. 5-17

1шт.

4

CLC102473803

SEAT

Bucket, Wheat, Right Hand, Inc. 5-17

1шт.

4

CLC103218901

SEAT

Bucket, Black, Left Hand, Inc. 5-17

1шт.

4

CLC103219001

SEAT

Bucket, Black, Right Hand, Inc. 5-17

1шт.

5

CLC1011652

PLATE

2шт.

6

CLC102047001

RIVET

4шт.

7

CLC102059401

SCREW

1шт.

8

CLC102061101

CUP

1шт.

9

CLC102298130

BOLT

4шт.

10

CLC102298401

NUT

4шт.

11

CLC102456001

PAN

Seat, Driver Assembly

1шт.

12

CLC102458901

WARNING DECAL

Hot Surface

1шт.

13

CLC102473501

ADJUSTER

Forward/Aft

1шт.

14

CLC102473601

ADJUSTER

Slider

1шт.

15

CLC102475901

WASHER

4шт.

16

NSS

NOT SOLD SEPARAT

SEAT, Bucket

1шт.

17

CLC451

LOCK WASHER

1шт.

18

CLC96742515

BOLT

2шт.

19

CLC1011652

PLATE

2шт.

20

CLC1012830

SCREW

4шт.

21

CLC1013734

WASHER, LOCK

4шт.

22

CLC102023703

PAN

Seat, Right Hand

1шт.

23

CLC102047001

RIVET

4шт.

24

CLC102059401

SCREW

1шт.

25

CLC102061101

CUP

1шт.

26

CLC102458901

WARNING DECAL

Hot Surface

1шт.

27

NSS

NOT SOLD SEPARAT

SEAT, Bucket

1шт.

28

CLC451

LOCK WASHER

1шт.

29

CLC102670601

BRACKET

Seatbelt, Bolt-On

1шт.

30

CLC102718101

WASHER

2шт.

31

CLC102732401

BOLT

2шт.

32

CLC102763701

COVER

Center Console

1шт.

33

CLC102967901

RIVET

4шт.

34

CLC103216401

FLANGE NUT

2шт.

35

CLC332

WASHER

2шт.

36

CLCAM1225701

SEAT COVER

Camo, Real Tree Hard Wood (Not Shown)

1шт.

Выбрано товаров: 40
