Запчасти Case IH SCOUT XL (90.120.01) - BENCH SEATS (90) - PLATFORM, CAB, BODYWORK AND DECALS

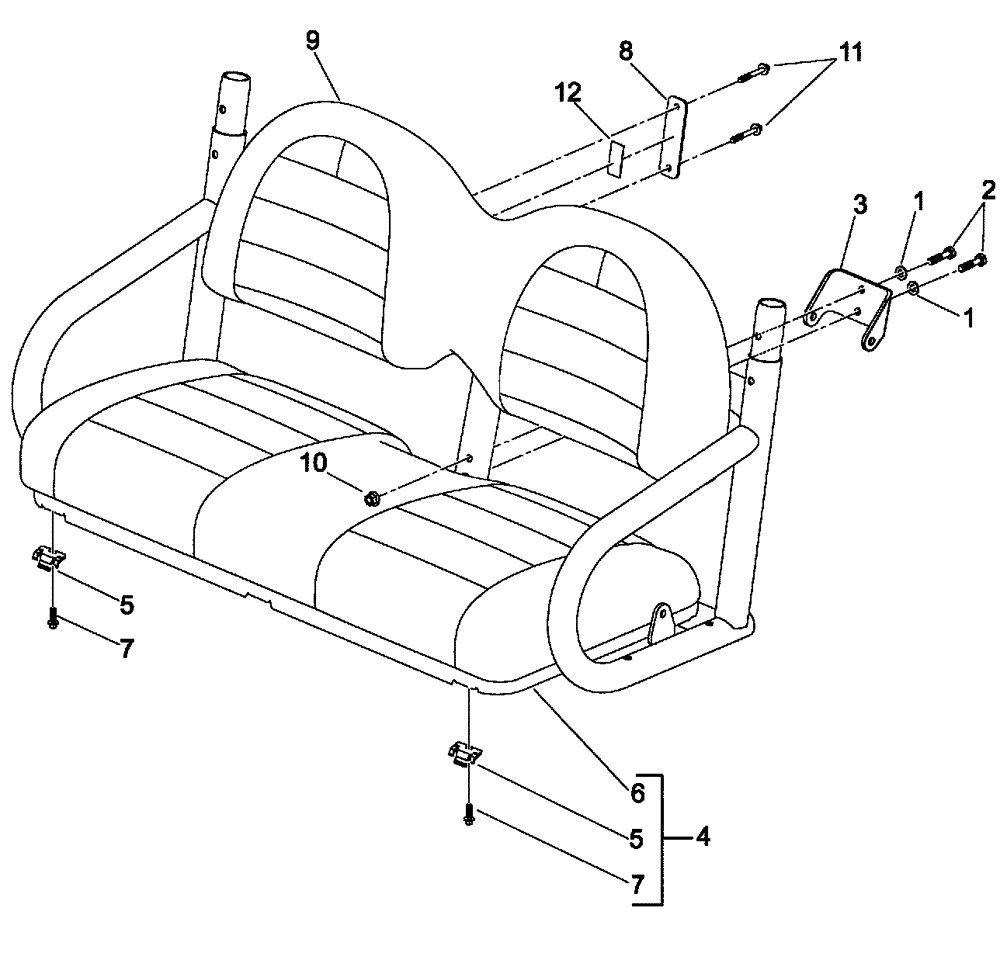

Схема запчастей Case IH SCOUT XL - (90.120.01) - BENCH SEATS (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
3
11
5
1
7
2
6
12
10
5
1
9
7

Артикул

Название

Примечание

Количество

1

CLC102718101

WASHER

2шт.

2

CLC102732401

BOLT

2шт.

3

CLC102759901

BRACKET

Seat Belt, Bench

1шт.

4

CLC102879201

SEAT

Bottom, Gray, Inc. 5-7

1шт.

4

CLC103602205

SEAT

Bottom, Wheat, Inc. 5-7

1шт.

4

CLC103629101

SEAT

Bottom, Black, Inc. 5-7

1шт.

4

CLC103455002

SEAT

Bottom, Black, Inc. 5-7

1шт.

5

CLC1011652

PLATE

2шт.

6

NSS

NOT SOLD SEPARAT

BENCH, Seat Bottom

1шт.

7

CLC103262201

FLANGE BOLT

2шт.

8

CLC102879401

BRACKET

Seat Back

2шт.

9

CLC102912301

SEAT BACK

Bench

1шт.

9

CLC103456003

SEAT BACK

Wheat

1шт.

9

CLC103456002

SEAT BACK

Black

1шт.

10

CLC103216401

FLANGE NUT

2шт.

11

CLC103262601

FLANGE BOLT

4шт.

12

NSS

NOT SOLD SEPARAT

TAPE, Double-Sided

1шт.

13

CLCAM1225801

SEAT COVER

Camo, Real Tree Hard Wood (Not Shown)

1шт.

Выбрано товаров: 18
