(90.118.09) - ROPS - HEAD RESTS - 4-SEATER

Запчасти Case IH SCOUT XL (90.118.09) - ROPS - HEAD RESTS - 4-SEATER (90) - PLATFORM, CAB, BODYWORK AND DECALS

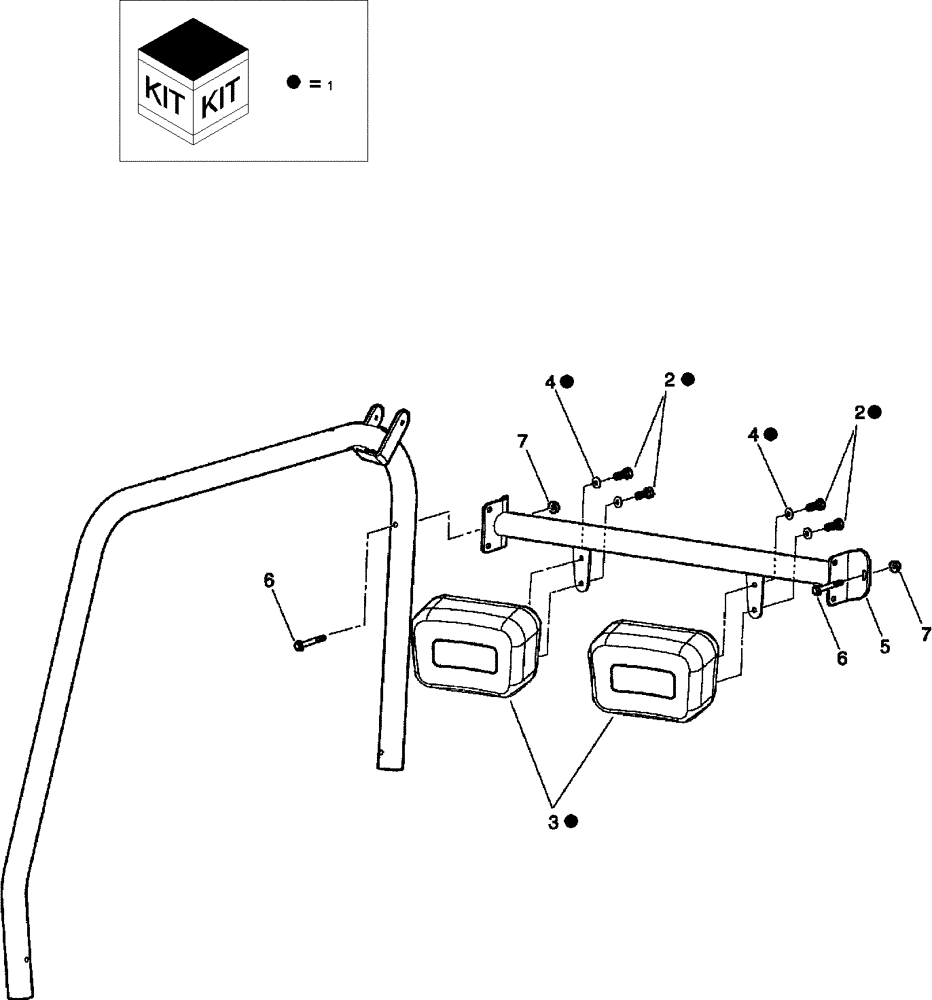

Схема запчастей Case IH SCOUT XL - (90.118.09) - ROPS - HEAD RESTS - 4-SEATER (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
1
1
1
6
3
6
1
7
5
1
2
1
1
4
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC103274602

KIT

Headrest, Inc. 2-4

1шт.

2

CLC102490101

BOLT

4шт.

3

CLC103274502

HEAD

2шт.

4

CLC96741046

WASHER

4шт.

5

CLC103319801

KIT

Rear Brace, Inc. 6-8

1шт.

6

CLC102988701

FLANGE BOLT

2шт.

7

CLC103216401

FLANGE NUT

2шт.

8

CLC103283801

BRACKET

Rear

1шт.

9

CLCAM1225901

SEAT HEADREST

Cover, Camo, Real Tree Hard Wood (Not Shown)

1шт.
