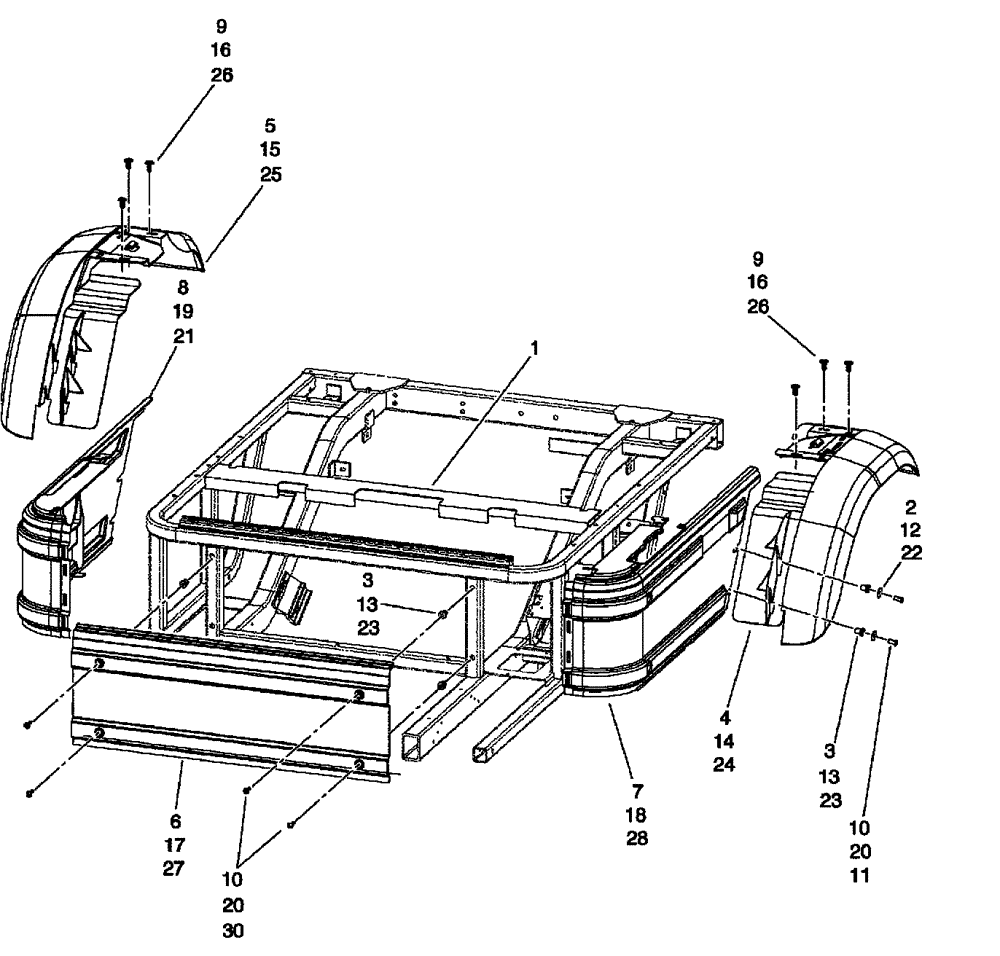

Запчасти Case IH SCOUT XL (90.110.05[02]) - SIDE PANELS AND REAR FENDERS - 2-SEATER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

CLC103331201

FRAME

1шт.

2

CLC1014306

WASHER

4шт.

3

CLC102491701

NUT

8шт.

4

CLC102913801

REAR FENDER

1шт.

5

CLC102913901

REAR FENDER

1шт.

6

CLC102914001

PANEL

Front, Kick, Standard

1шт.

7

CLC102914101

PANEL

Side, Molded, Left Hand, Standard

1шт.

8

CLC102914102

PANEL

Side, Molded, Right Hand, Standard

1шт.

9

CLC103200501

SCREW

6шт.

10

CLC8251

SCREW

8шт.

11

CLC8251

SCREW

8шт.

12

CLC1014306

WASHER

4шт.

13

CLC102491701

NUT

8шт.

14

CLC102913801

REAR FENDER

1шт.

15

CLC102913901

REAR FENDER

1шт.

16

CLC103200501

SCREW

6шт.

17

CLC103289001

PANEL

Front, Kick, Camo, RealTree HardWood

1шт.

18

CLC103289101

PANEL

Side, Molded, Left Hand, Camo, RealTree HardWood

1шт.

19

CLC103289103

PANEL

Side, Molded, Right Hand, Camo, RealTree HardWood

1шт.

20

CLC8251

SCREW

8шт.

21

CLC103289104

PANEL

Side, Molded, Right Hand

1шт.

22

CLC1014306

WASHER

4шт.

23

CLC102491701

NUT

8шт.

24

CLC102913801

REAR FENDER

1шт.

25

CLC102913901

REAR FENDER

1шт.

26

CLC103200501

SCREW

6шт.

27

CLC103289002

PANEL

Front, Kick, Camo, Mossy Oak Infinity

1шт.

28

CLC103289102

PANEL

Side, Molded, Left Hand, Camo, Mossy Oak Infinity

1шт.
