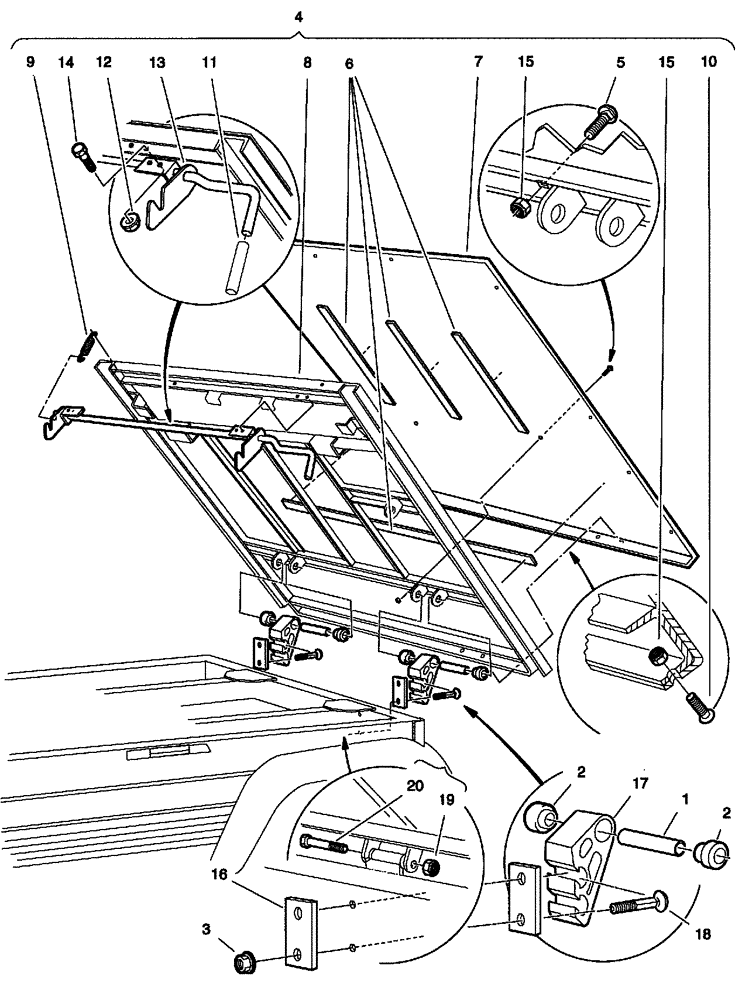

Запчасти Case IH SCOUT XL (90.110.02) - TILT BED, HINGE, AND LATCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

CLC1012303

BUSHING

Steel

2шт.

2

CLC1015583

BUSHING

Urethane

2шт.

3

CLC102065901

LOCK NUT

4шт.

4

CLC102171503

DUMP BODY

Inc. 5-15

1шт.

5

CLC1010435

BOLT

4шт.

6

CLC1014471

TAPE

Vinyl Foam 1/8" x 3/4"

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE, Floor Bed

1шт.

8

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY

1шт.

9

CLC1015391

LATCH

Spring

2шт.

10

CLC1015399

SCREW

4шт.

11

CLC1015400

GRIP

Tilt Latch Hand

1шт.

12

CLC101835601

LOCK NUT

4шт.

13

CLC102426901

LATCH

Tilt Bed

1шт.

14

CLC403

SCREW

4шт.

15

CLC7473

LOCK NUT

8шт.

16

CLC102614101

PLATE

Back

2шт.

17

CLC103538701

HINGE

Bracket, Bed

2шт.

18

CLC103538901

CARRIAGE BOLT

4шт.

19

CLC8754

LOCK NUT

2шт.

20

CLC8755

SCREW

2шт.
