/ / / / / / / / (10.101.02[01]) - VALVES - GASOLINE ENGINE

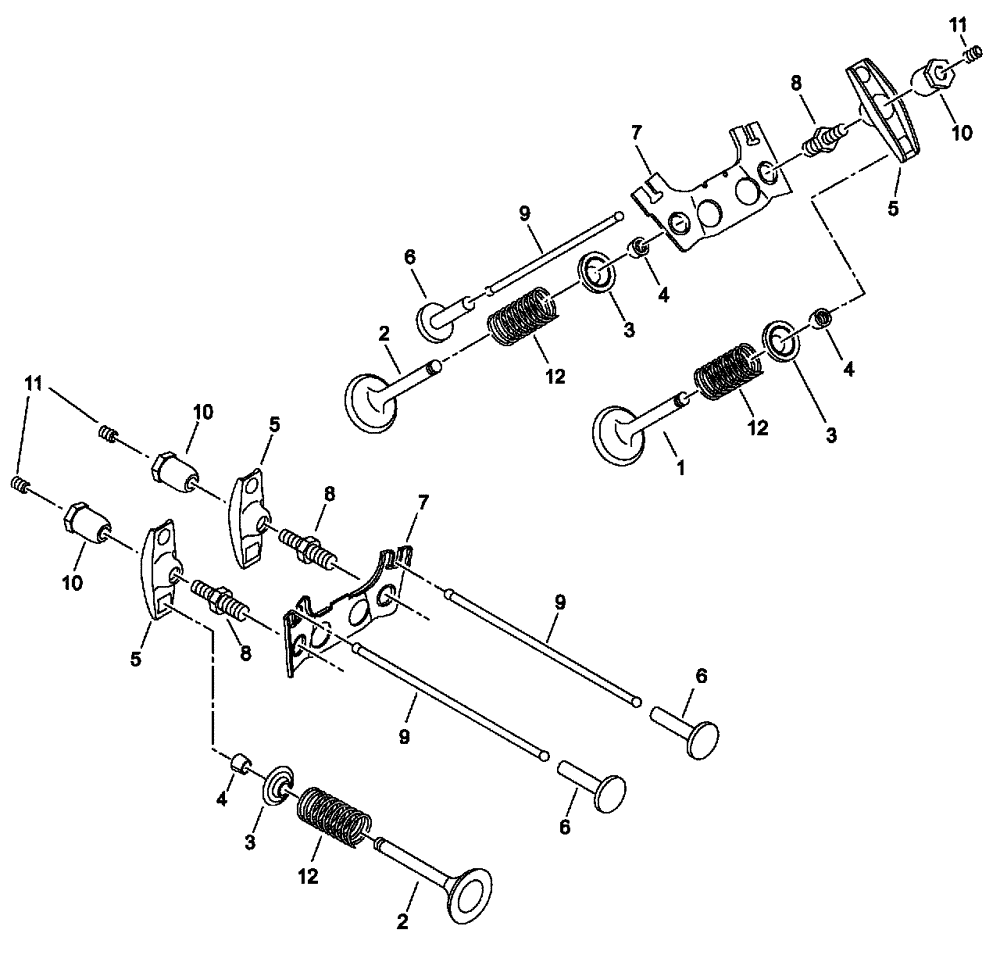

Запчасти Case IH SCOUT XL (10.101.02[01]) - VALVES - GASOLINE ENGINE (10) - ENGINE
![Схема запчастей Case IH SCOUT XL - (10.101.02[01]) - VALVES - GASOLINE ENGINE (10) - ENGINE](https://partsell.ru/storage/images/caseih/958730.png)
3
8
5
6
4
5
12
8
4
10
9
4
7
5
12
11
6
2
10
12
11
8
9
6
10
7
3
9
2
3
1
1
CLC102994601
STD INLET VALVE
STD ENGINE INLET VALVE
2шт.
2
CLC102994701
STD EXHAUST VALVE
STD ENGINE EXHAUST VALVE
2шт.
3
CLC102994801
RETAINER
Valve Spring
4шт.
4
CLC102994901
COLLET
Spring, Valve
8шт.
5
CLC102995001
ROCKER ARM
4шт.
6
CLC102995101
TAPPET
Push Rod
4шт.
7
CLC102995201
GUIDE
Arm, Rocker
2шт.
8
CLC102996501
STUD
Rocker Arm
4шт.
9
CLC102995401
PUSH ROD
4шт.
10
CLC102996101
NUT
Arm, Rocker
4шт.
11
CLC102996001
SCREW
Rocker Arm
4шт.
12
CLC102995801
VALVE SPRING
4шт.
