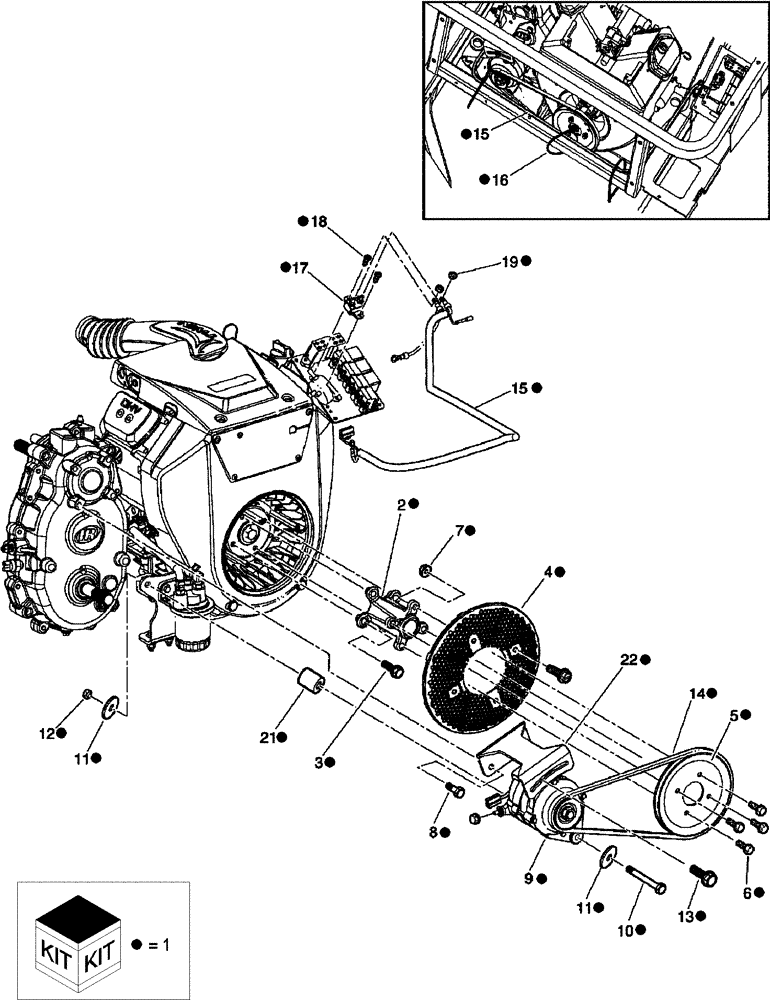

Запчасти Case IH SCOUT XL (88.301.01[02]) - DIA KIT, 50 AMP ALTERNATOR, GASOLINE ENGINE (88) - ACCESSORIES

1

CLC103204201

DIA KIT, ADD PROD

50 amp Alternator, Inc. 2-22

1шт.

2

CLC103186001

ADAPTER

PTO

1шт.

3

CLC103203901

BOLT

4шт.

4

CLC103326801

SCREEN

Fan

1шт.

5

CLC103203201

PULLEY

Drive Clutch

1шт.

6

CLC102889501

BOLT

4шт.

7

CLC102298401

NUT

4шт.

8

CLC102490101

BOLT

2шт.

9

CLC102405901

ALTERNATOR

50 amp

1шт.

10

CLC102732301

BOLT

1шт.

11

CLC102491501

WASHER

2шт.

12

CLC102616701

LOCK NUT

1шт.

13

CLC102298130

BOLT

6шт.

14

CLC1012338

BELT

Alternator

1шт.

15

CLC102712401

WIRE HARNESS

Alternator

1шт.

16

CLC8990

STRAP

4шт.

17

CLC102448701

CIRCUIT BREAKER

50 amp

1шт.

18

CLC102447901

FASTENER

2шт.

19

CLC1013061

NUT

2шт.

20

CLC96704176

SERRATED NUT

(Not Shown)

1шт.

21

CLC102627301

SPACER

Alternator

1шт.

22

CLC102713001

BRACKET

Alternator, Top

1шт.
