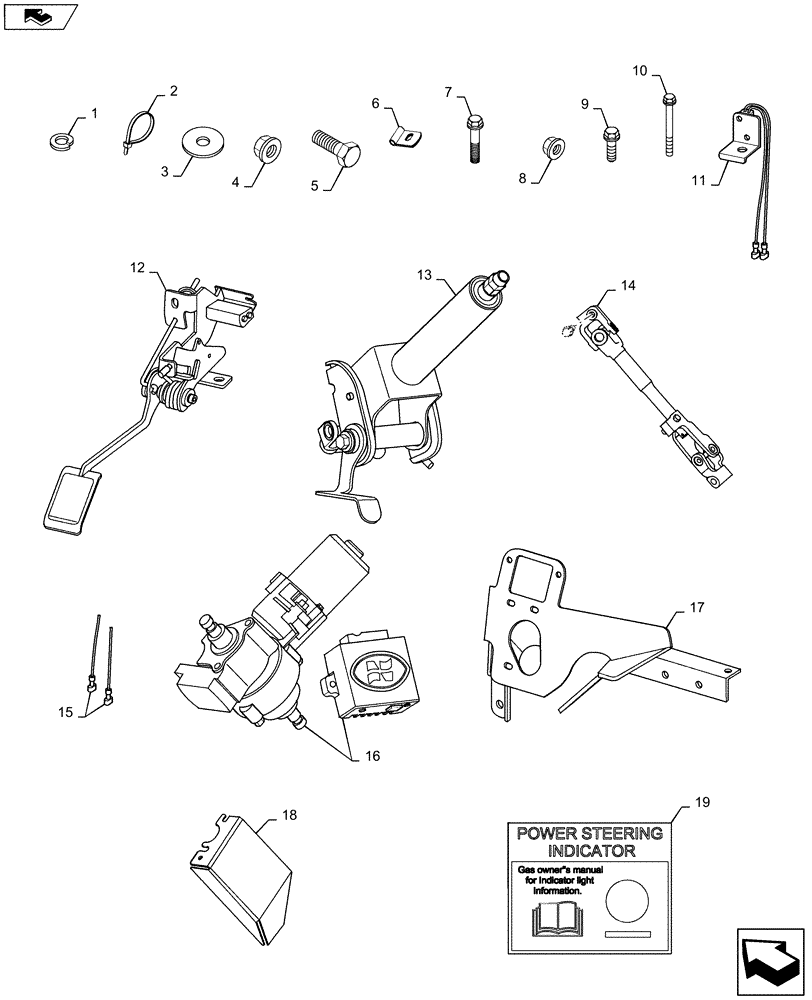

Запчасти Case IH SCOUT XL (88.204.02) - DIA KIT, POWER STEERING (88) - ACCESSORIES

1

CLC7174

WASHER

Lock Washer

3шт.

2

CLC8639

STRAP

Tie Wrap, 11" Nylon

10шт.

3

CLC1011578

WASHER

Flat Washer

3шт.

4

CLC96704416

SERRATED NUT

WhizLock Nut

1шт.

5

CLC96705587

BOLT

Hex Cap Screw

3шт.

6

CLC1022045801

CLAMP

P-Clamp

1шт.

7

CLC102298130

BOLT

Flanged Head Bolt

3шт.

8

CLC102298401

NUT

LockNut

6шт.

9

CLC102298701

BOLT

Taptite Bolt

1шт.

10

CLC102618301

BOLT

Flanged Head Bolt

3шт.

11

CLC103259401

LIMIT SWITCH

Accelerator Limit Switch ASM

1шт.

12

CLC103278101

PEDAL

Accelerator Pedal ASM

1шт.

13

CLCSVP300101

STEERING COLUMN

Upper Steering Column

1шт.

14

CLCSVP300102

STEERING COLUMN

Lower Steering Column

1шт.

15

CLCSVP300601

WIRE HARNESS

Harness, Wiring

1шт.

16

CLCSVPP299701

MOTOR

Power Steering Motor Unit and Controller

1шт.

17

CLCSVPP302201

BRACKET

Steering Bracket

1шт.

18

CLCSVPP306901

COVER

1шт.

19

CLCSVPP333001

DECAL

Power Steering Decal

1шт.
