(88.150.11) - DIA KIT, 3-SIDED VINYL ENCLOSURE, 4-SEATER

Запчасти Case IH SCOUT XL (88.150.11) - DIA KIT, 3-SIDED VINYL ENCLOSURE, 4-SEATER (88) - ACCESSORIES

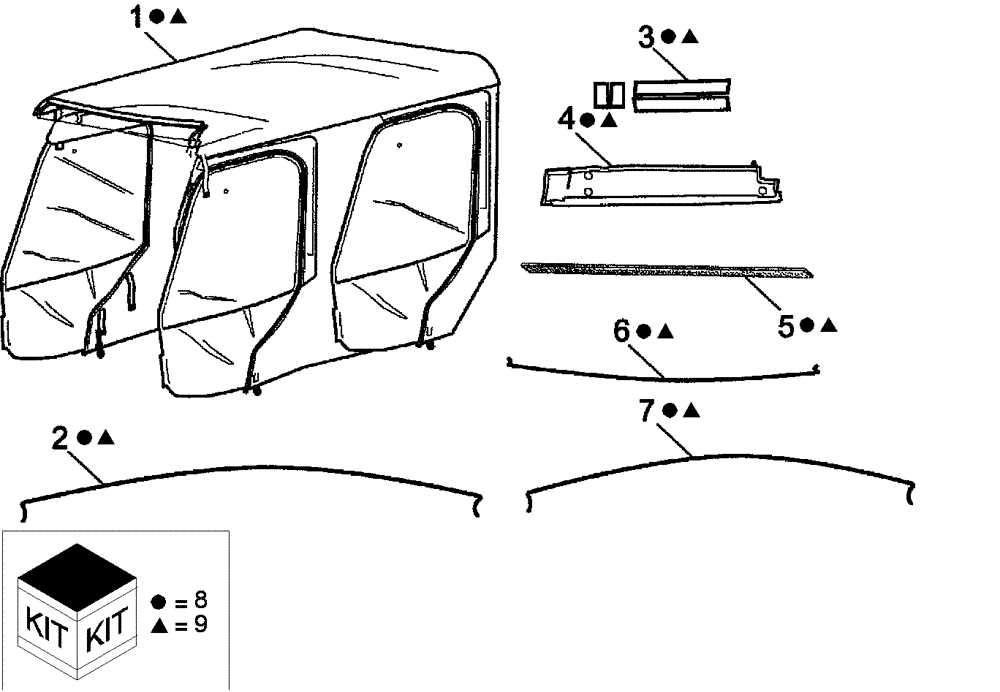

Схема запчастей Case IH SCOUT XL - (88.150.11) - DIA KIT, 3-SIDED VINYL ENCLOSURE, 4-SEATER (88) - ACCESSORIES
8
8
9
1
5
8
9
9
7
9
8
8
9
4
8
9
9
9
8
9
3
6
8
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

ENCLOSURE, 3-Sided Vinyl

1шт.

2

CLC102702503

ROD

Rear Top Support

2шт.

3

NSS

NOT SOLD SEPARAT

STRIPS, Velcro

1шт.

4

NSS

NOT SOLD SEPARAT

SLEEVE, Vinyl

2шт.

5

NSS

NOT SOLD SEPARAT

STRIP, Velcro

1шт.

6

CLC102702502

ROD

Rear Support

1шт.

7

CLC102702501

ROD

Front Top Support

2шт.

8

CLCAM1223101

DIA KIT, ADD PROD

3-Sided Vinyl Enclosure, Black, Inc. 1-7

1шт.

9

CLCAM1226201

DIA KIT, ADD PROD

3-Sided Vinyl Enclosure, Camo, Real Tree Hard Wood, Inc. 1-7

1шт.
