Запчасти Case IH SCOUT XL (10.101.01[01]) - CYLINDER HEAD AND CRANKCASE - GASOLINE ENGINE (10) - ENGINE

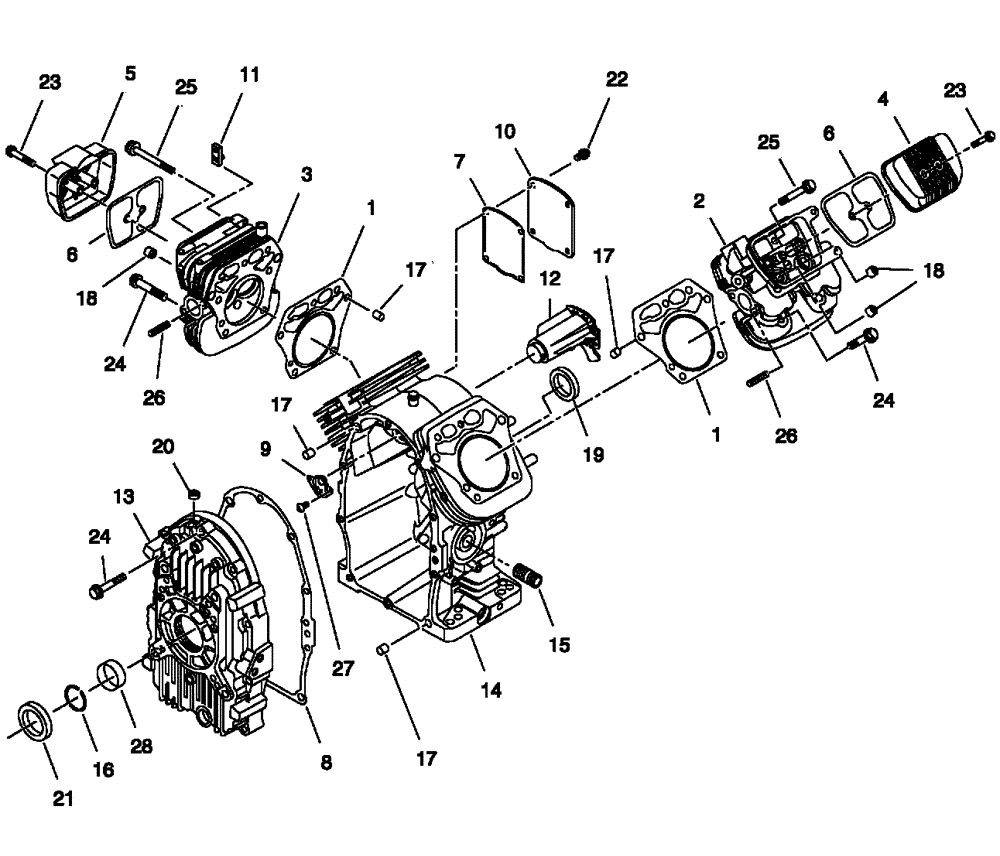

Схема запчастей Case IH SCOUT XL - (10.101.01[01]) - CYLINDER HEAD AND CRANKCASE - GASOLINE ENGINE (10) - ENGINE
26
2
9
18
17
23
15
6
7
17
22
25
10
25
24
27
20
17
17
23
18
21
1
11
6
13
1
12
4
14
16
24
5
28
19
8
3
24
26

Артикул

Название

Примечание

Количество

1

CLC102990101

GASKET

Cylinder Head

2шт.

2

CLC102990201

CYLINDER HEAD

1шт.

3

CLC102990301

CYLINDER HEAD

1шт.

4

CLC102990401

COVER

Rocker

1шт.

5

CLC102990501

COVER

Rocker

1шт.

6

CLC102990601

GASKET

Rocker Cover

2шт.

7

CLC102990701

GASKET

Breather

1шт.

8

CLC102990801

GASKET

Crank Cover

1шт.

9

CLC102990901

VALVE

1шт.

10

CLC102991101

COVER

Crankcase

1шт.

11

CLC102991201

PIPE

1шт.

12

CLC102991301

PIPE

1шт.

13

CLC102991401

COVER

Crankcase

1шт.

14

CLC102991501

COVER

1шт.

15

CLC102991601

NIPPLE

Oil Filter

1шт.

16

CLC102991801

SNAP RING

1шт.

17

CLC102991901

PIN

6шт.

18

CLC102992001

SEAL

Valve

4шт.

19

CLC102992101

OIL SEAL

Crank, Rear

1шт.

20

CLC102992201

OIL SEAL

Governor

1шт.

21

CLC102992301

OIL SEAL

Crank, Front

1шт.

22

CLC102992401

FLANGE BOLT

4шт.

23

CLC102992601

FLANGE BOLT

4шт.

24

CLC102992701

FLANGE BOLT

18шт.

25

CLC102992801

FLANGE BOLT

2шт.

26

CLC102992901

STUD

4шт.

27

CLC103298601

SCREW

2шт.

28

CLC103298901

BUSHING

Main

1шт.

Выбрано товаров: 28
