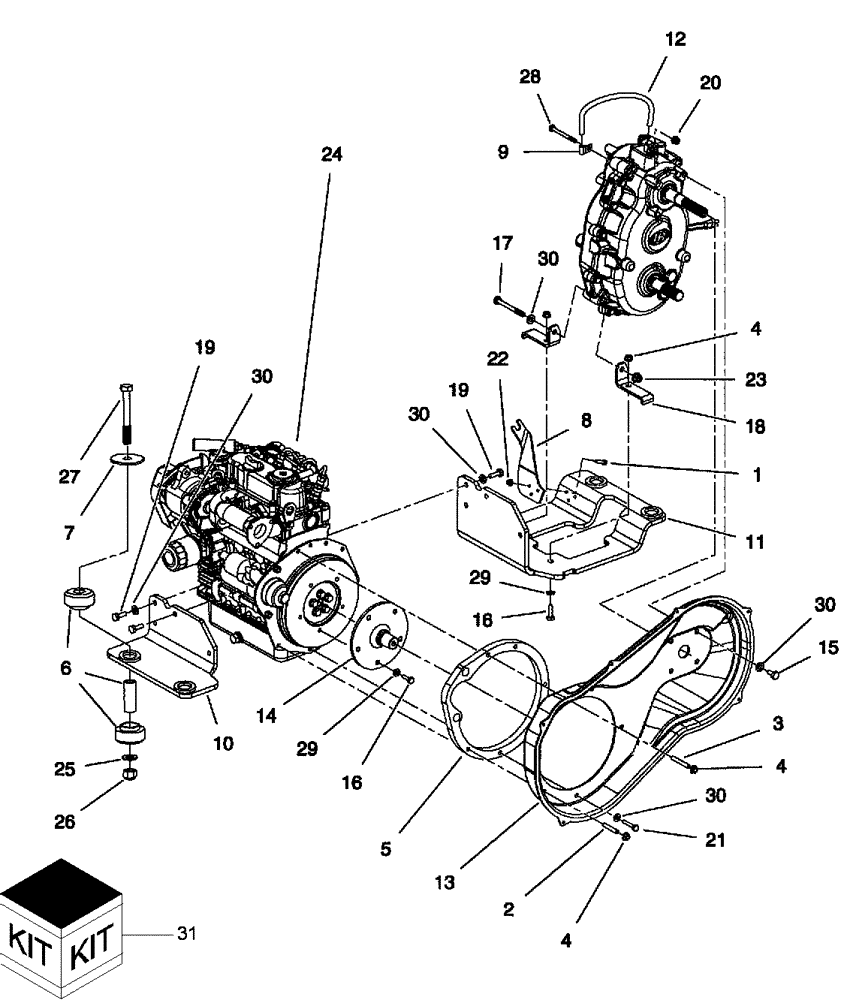

Запчасти Case IH SCOUT XL (10.012.01[02]) - KUBOTA D722 DIESEL ENGINE MOUNTING (10) - ENGINE

1

CLC1012769

SCREW

3шт.

2

CLC101833101

STUD

1шт.

3

CLC101833201

STUD

1шт.

4

CLC102298401

NUT

7шт.

5

CLC102370101

SPACER

1шт.

6

CLC102370501

ISOLATOR

4шт.

7

CLC102370601

LOCK WASHER

4шт.

8

CLC102382401

BRACKET, SUPPORTING

Transmission Cable

1шт.

9

CLC102410603

CLAMP

1шт.

10

CLC102414701

PLATE

Engine Mounting, Left Hand

1шт.

11

CLC102414801

PLATE

Engine Mounting, Right Hand

1шт.

12

CLC102462301

HOSE

Vent, Transmission

1шт.

13

CLC102462501

COVER

CVT Inner

1шт.

14

CLC102465901

SHAFT

CVT Adapter

1шт.

15

CLC102490101

BOLT

4шт.

16

CLC102490201

BOLT

7шт.

17

CLC102490501

BOLT

1шт.

18

CLC102494401

BRACKET

Transmission Mounting

2шт.

19

CLC102498201

BOLT

8шт.

20

CLC102618601

LOCK NUT

1шт.

21

CLC102621301

BOLT

3шт.

22

CLC102621501

FLANGE NUT

3шт.

23

CLC102670701

NUT

1шт.

24

CLC103589201

ENGINE

1шт.

25

CLC96701412

WASHER

4шт.

26

NSS

NOT SOLD SEPARAT

LOCKNUT, M12x1.75 Nylon Inset

4шт.

27

CLC96704721

BOLT

4шт.

28

CLC96718978

BOLT

1шт.

29

CLC96741038

WASHER

10шт.

30

CLC96741046

WASHER

12шт.

31

CLCAM11805

REPAIR KIT

Inc. Air Filter, Oil Filter, Fuel Filters, Water Separator Filter

1шт.
