Запчасти Case IH SCOUT XL (88.120.01[01]) - DIA KIT, SPEEDOMETER (88) - ACCESSORIES

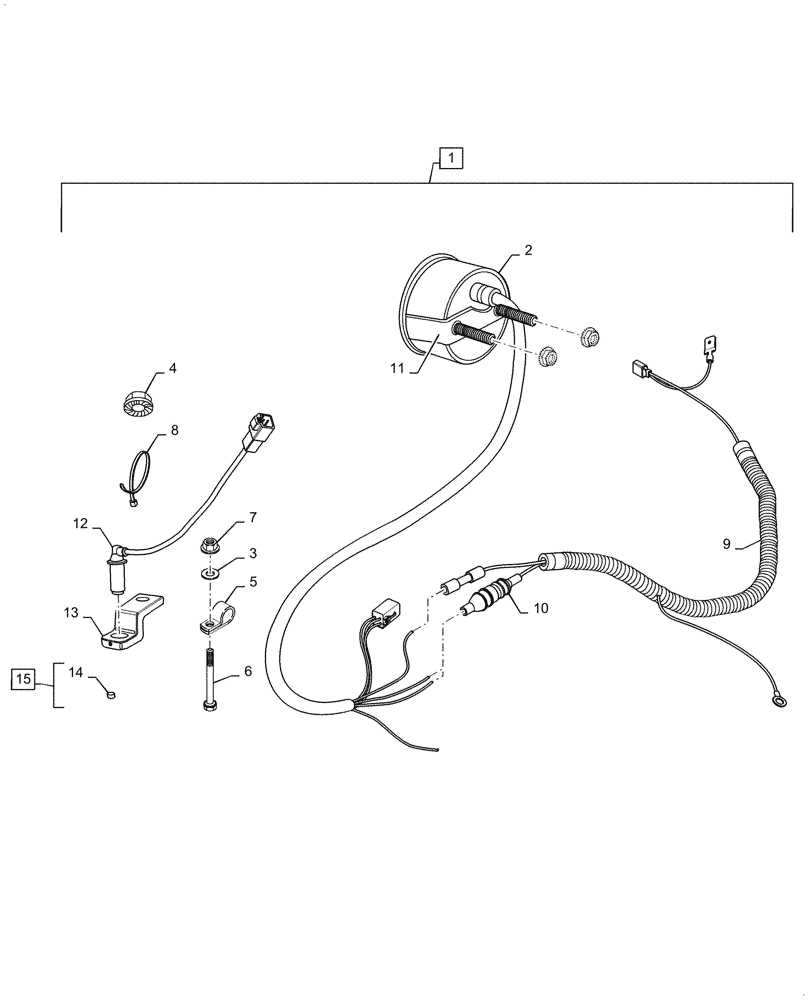

Схема запчастей Case IH SCOUT XL - (88.120.01[01]) - DIA KIT, SPEEDOMETER (88) - ACCESSORIES
10
9
3
7
11
13
14
12
5
2
15
8
1
6
4

Артикул

Название

Примечание

Количество

1

CLCSVP314202

DIA KIT, ADD PROD

Speedometer, Incl 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

Speedometer Kit, Incl in 2

1шт.

3

CLC1014306

WASHER

1/4" ID

1шт.

4

CLC96704416

SERRATED NUT

M8 x 1.25

1шт.

5

CLC102410603

CLAMP

5/16" ID, Insulated, P

1шт.

6

CLC102541445

FLANGE BOLT

M6 x 1 x 45mm L

1шт.

7

CLC102541501

NUT

Lock, M6 x 1

1шт.

8

CLC8639

STRAP

11" L

6шт.

9

NSS

NOT SOLD SEPARAT

Speedometer Power Wire Harness, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

5 A, 250V, Fast Blow Fuse, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Speedometer Guage Bracket, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Speed Sensor, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Speed Sensor Mounting Bracket, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Speed Sensor Magnet, Incl in 1, 15

1шт.

15

CLCSVP310401

SERVICE KIT

Magnet, Speedometer

1шт.

Выбрано товаров: 15
