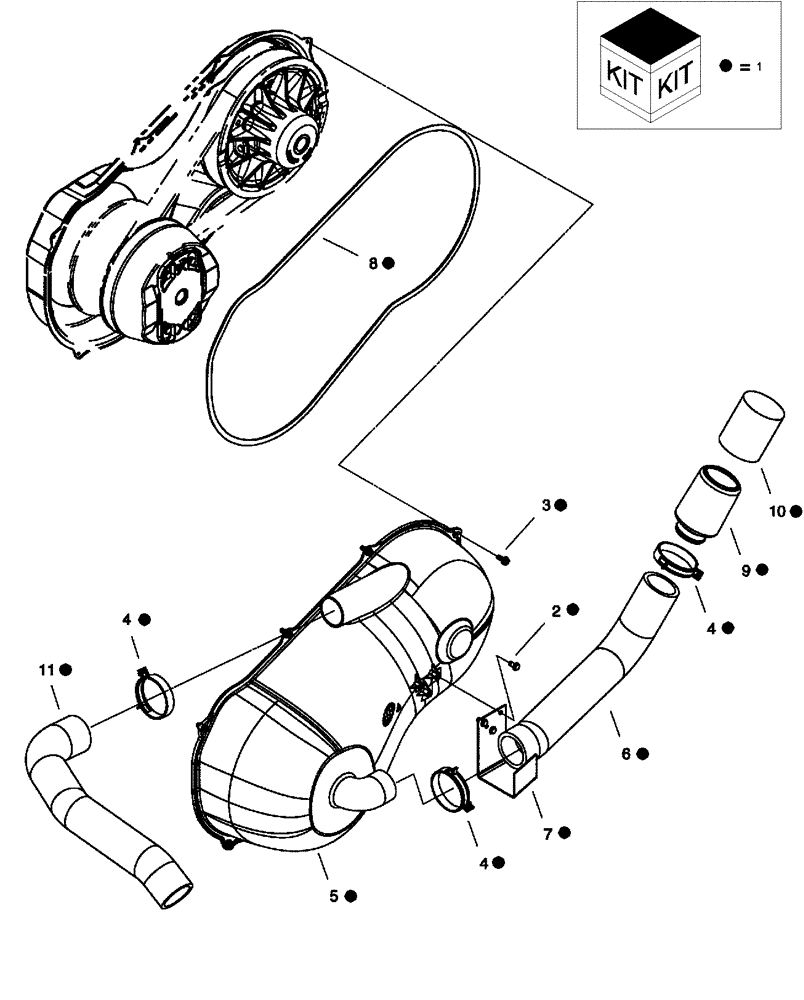

Запчасти Case IH SCOUT XL (88.110.02) - DIA KIT, CLUTCH COVER - SEALED (88) - ACCESSORIES
11
1
1
5
1
4
1
4
1
1
10
2
1
1
4
1
1
1
7
1
8
3
9
1
1
6
№
Артикул
Название
Примечание
Количество
1
CLC102616003
KIT
DIA, Cover, Sealed CVT, Inc. 2-11
1шт.
2
CLC101856102
SCREW
3шт.
3
CLC102296716
SCREW
7шт.
4
CLC102411210
CLAMP
3шт.
5
CLC102414501
COVER
Constant Velocity Transmission Outer
1шт.
6
CLC102481001
HOSE
Inlet, Cover, Constant Velocity Transmission
1шт.
7
CLC102481201
BRACKET
Inlet, Cover, Constant Velocity Transmission
1шт.
8
CLC102481301
GASKET
Cover, Constant Velocity Transmission
1шт.
9
CLC102616101
CAP
Inlet, Cover, Constant Velocity Transmission
1шт.
10
CLC102628001
COVER
Inlet, Cover, Constant Velocity Transmission
1шт.
11
CLC103320601
HOSE
Outlet, Constant Velocity Transmission
1шт.
Выбрано товаров: 11
