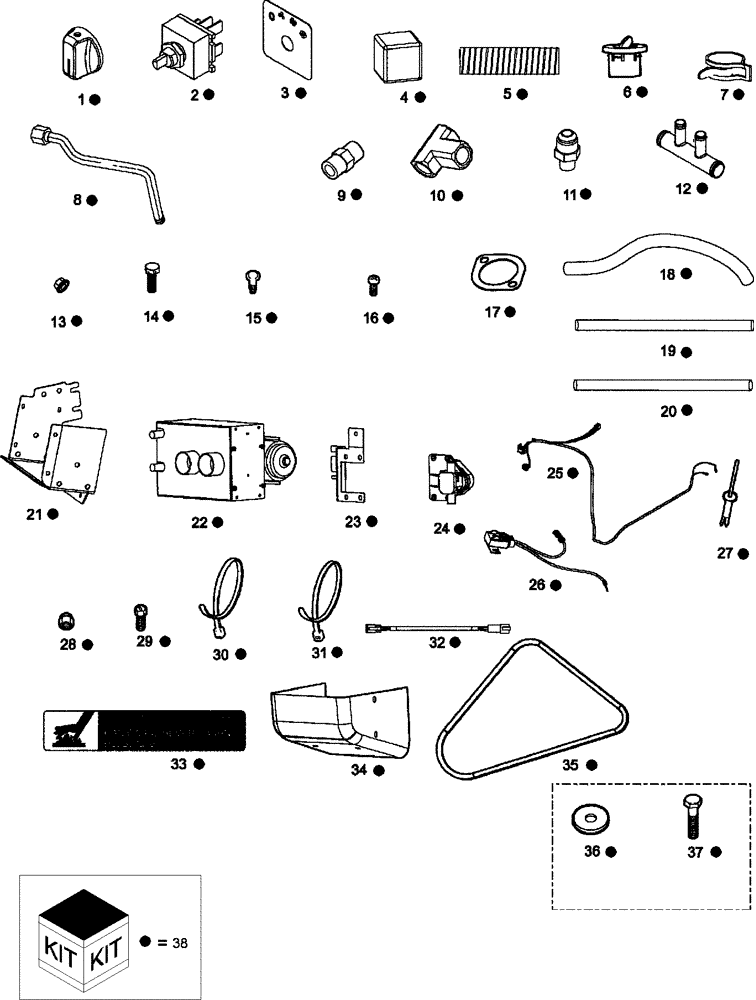

Запчасти Case IH SCOUT XL (88.104.02) - DIA KIT, CAB HEATER, DIESEL ENGINE (88) - ACCESSORIES

1

CLC102732801

KNOB

Fan Control

1шт.

2

CLC102732901

SWITCH

Fan

1шт.

3

CLC102733001

DECAL

Fan Switch

1шт.

4

CLC102420201

RELAY

Cab Heater

1шт.

5

CLC103201001

DUCT

Air

2шт.

6

CLC103200901

VENT

Outlet

2шт.

7

CLC102411205

CLAMP

7шт.

8

CLC102847901

TUBE

Heater

1шт.

9

CLC103492801

NIPPLE

1шт.

10

CLC103402201

TEE

1шт.

11

CLC102735501

ADAPTER

1шт.

12

CLC102733101

TEE

1шт.

13

CLC1015068

LOCK NUT

6шт.

14

CLC1015521

SCREW

6шт.

15

CLC1016967

RIVET

4шт.

16

CLC1016092

SCREW

4шт.

17

CLC102633401

GASKET

Thermostat

1шт.

18

CLC102848801

HOSE

Coolant, 2190 mm

1шт.

19

CLC103263401

HOSE

Heater Coolant, 430 mm

1шт.

20

CLC103263501

HOSE

Heater Coolant, 700 mm

1шт.

21

CLC103344701

BRACKET

Heater Support

1шт.

22

CLC103200801

HEATER

Hydronic

1шт.

23

CLC103344601

BRACKET

Valve Support

1шт.

24

CLC103264001

VALVE

Heater

1шт.

25

CLC103313901

WIRE HARNESS

Cab Heater

1шт.

26

CLC103314101

FUSE

Cab Heater

1шт.

27

CLC102448001

RIVET

1шт.

28

CLC1013061

NUT

1шт.

29

CLC1017082

SCREW

1шт.

30

CLC102025401

SECURING STRAP

5шт.

31

CLC8639

STRAP

7шт.

32

CLC102755801

WIRE HARNESS

Temperature Sensor

1шт.

33

CLC102458901

WARNING DECAL

Hot Surface

1шт.

34

CLC103332901

COVER

Heater

1шт.

35

CLC103305501

BELT

Alternator

1шт.

36

CLC1014306

WASHER

2шт.

37

CLC1703

BOLT

2шт.

38

CLC103872301

DIA KIT, TRACTOR

Cab Heater, Inc. 1-37

1шт.
