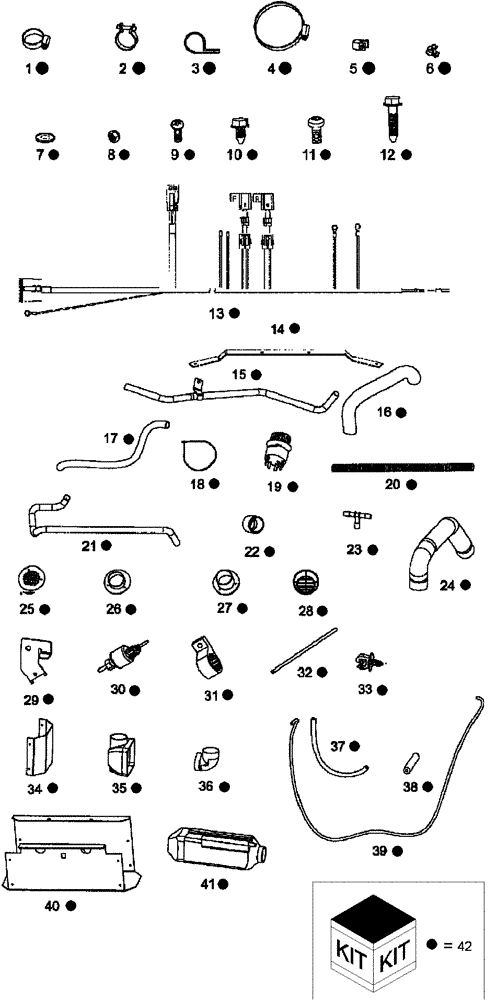

Запчасти Case IH SCOUT XL (88.104.01) - DIA KIT, CAB HEATER, GASOLINE ENGINE (88) - ACCESSORIES

1

NSS

NOT SOLD SEPARAT

CLAMP

1шт.

2

CLC102747201

CLAMP

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP

1шт.

4

CLC102748301

CLAMP

5шт.

5

CLC102746701

HOSE CLAMP

4шт.

6

CLC102746601

HOSE CLAMP

4шт.

7

CLC1014007

WASHER

2шт.

8

CLC101835601

LOCK NUT

2шт.

9

CLC102628601

SCREW

2шт.

10

CLC102298716

BOLT

1шт.

11

CLC102617301

SCREW

16шт.

12

CLC102289001

SCREW

1шт.

13

CLC102756001

WIRE HARNESS

Cab Heater

1шт.

14

CLC103293801

MOUNT

Splash Guard

1шт.

15

CLC102754601

TUBE

Exhaust

1шт.

16

CLC102754401

DUCT

Flexible

1шт.

17

CLC102747101

FLEXIBLE HOSE

Exhaust

1шт.

18

CLC8639

STRAP

5шт.

19

CLC102745401

SWITCH

12 Volt Rheostat, Cab Heater

1шт.

20

NSS

NOT SOLD SEPARAT

CONDUIT

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE, Air Intake

1шт.

22

CLC102754301

CAP

Air Intake

1шт.

23

CLC102748001

TEE

1шт.

24

CLC102748601

DUCT

Flexible

2шт.

25

NSS

NOT SOLD SEPARAT

VENT, Inlet Grill

1шт.

26

CLC102748101

MOUNT

Flange Inlet

1шт.

27

NSS

NOT SOLD SEPARAT

MOUNT, Flange Outlet

1шт.

28

NSS

NOT SOLD SEPARAT

VENT, Outlet

1шт.

29

CLC102753501

BRACKET

Fuel Pump

1шт.

30

CLC102745201

FUEL PUMP

1шт.

31

NSS

NOT SOLD SEPARAT

CLAMP, Fuel Pump

1шт.

32

CLC102753601

PIPE

Fuel Shield

1шт.

33

CLC102475701

CLIP

Brake Line

2шт.

34

CLC102736601

CAP

Heater

2шт.

35

CLC102747801

HOOD

Air Outlet

1шт.

36

NSS

NOT SOLD SEPARAT

CAP, 90 Degree

1шт.

37

CLC102746901

FUEL HOSE

300 mm

1шт.

38

CLC102746801

FUEL HOSE

50 mm

2шт.

39

CLC102747001

FUEL HOSE

1930 mm

1шт.

40

NSS

NOT SOLD SEPARAT

COVER, Heater

1шт.

41

CLC102745101

HEATER

Air

1шт.

42

CLC103255501

DIA KIT, ADD PROD

Cab Heater, Gasoline Engine, Inc. 1-41

1шт.
