(88.100.05) - DIA KIT, FRONT DIFFERENTIAL DISABLE

Запчасти Case IH SCOUT XL (88.100.05) - DIA KIT, FRONT DIFFERENTIAL DISABLE (88) - ACCESSORIES

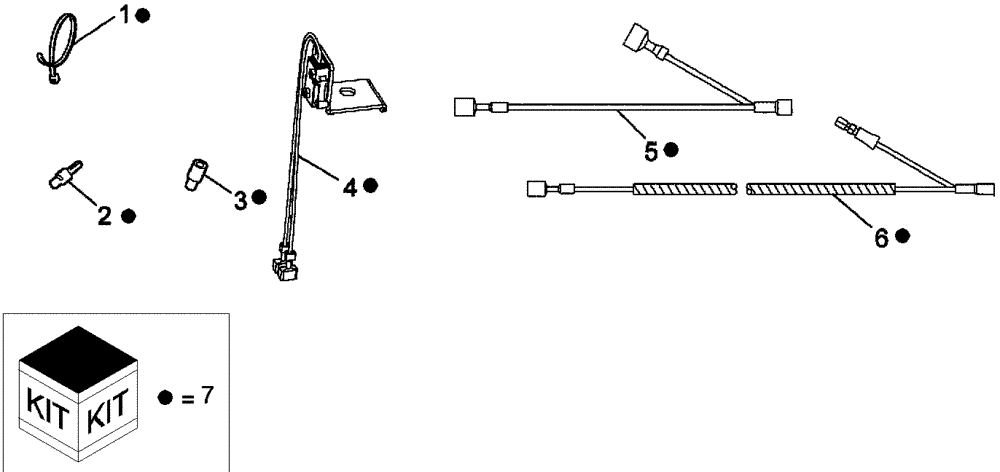

Схема запчастей Case IH SCOUT XL - (88.100.05) - DIA KIT, FRONT DIFFERENTIAL DISABLE (88) - ACCESSORIES
7
7
7
7
5
7
4
7
7
7
1
3
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC8990

STRAP

5шт.

2

NSS

NOT SOLD SEPARAT

CONNECTOR, Male

1шт.

3

NSS

NOT SOLD SEPARAT

CONNECTOR, Female

1шт.

4

CLC103259401

LIMIT SWITCH

Accelerator

1шт.

5

CLC103319201

WIRE HARNESS

Front Differential Disable

1шт.

6

CLC103319301

WIRE HARNESS

Front Differential Disable

1шт.

7

CLCSVP289202

DIA KIT, ADD PROD

Front Differential Disable, Inc. 1-6

1шт.

8

CLCSVPP274601

SWITCH

On/Off Rocker, Front Differential Disable (Not Shown)

1шт.
