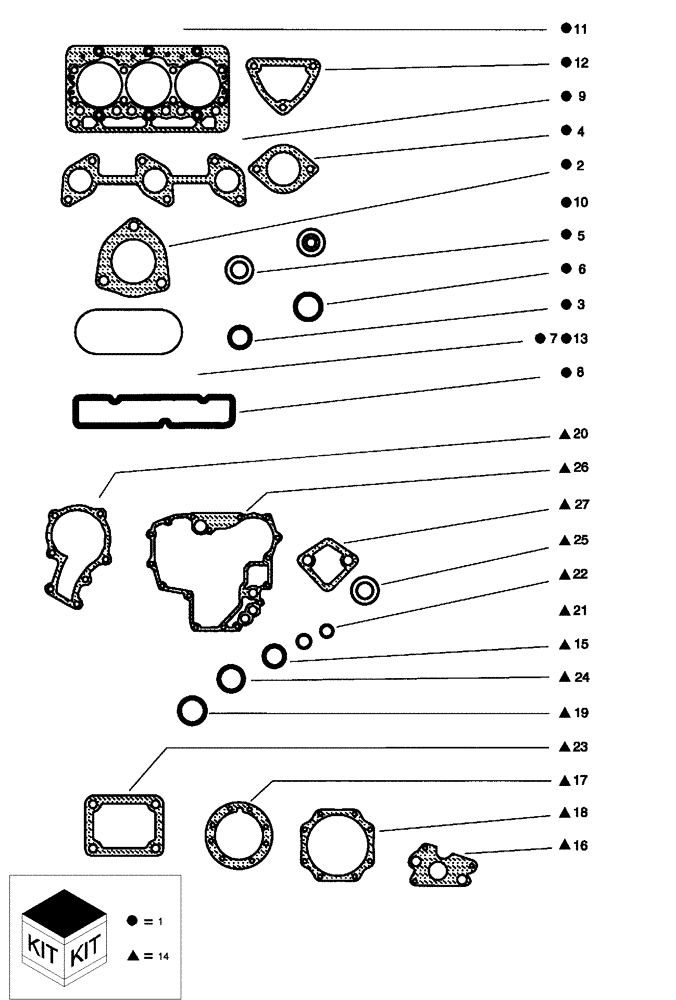

Запчасти Case IH SCOUT XL (00.000.01) - GASKET KITS - DIESEL ENGINE (00) - GENERAL & PICTORIAL INDEX

1

CLC102731801

GASKET KIT

Upper, Inc. 2-13

1шт.

2

CLC102422301

GASKET

Exhaust Diesel

1шт.

3

CLC102600301

O-RING

1шт.

4

CLC102633401

GASKET

Thermostat

1шт.

5

CLC102635301

GASKET

3шт.

6

CLC102644001

O-RING

1шт.

7

CLC102644501

GASKET

Head Cover

1шт.

8

CLC102646001

GASKET

Intake Manifold

1шт.

9

CLC102646601

GASKET

Exhaust Manifol

1шт.

10

CLC102653301

VALVE STEM

Seal

6шт.

11

CLC102654101

GASKET

Cylinder Head

1шт.

12

CLC102654701

GASKET

Water Flange

1шт.

13

CLC102798501

GASKET

Cylinder Head Cover

1шт.

14

CLC102731901

GASKET KIT

Inc. 15-27

1шт.

15

CLC102601801

O-RING

3шт.

16

CLC102606601

GASKET

Oil Pump

1шт.

17

CLC102608201

GASKET

Bearing Case

1шт.

18

CLC102608301

GASKET

Cover

1шт.

19

CLC102630301

O-RING

1шт.

20

CLC102632701

GASKET

Water Pump

1шт.

21

CLC102634001

O-RING

1шт.

22

CLC102634401

O-RING

1шт.

23

CLC102634501

GASKET

Control Plate

1шт.

24

CLC102654601

O-RING

1шт.

25

CLC102728801

GASKET

Idle apparatus, Rear

2шт.

26

CLC102729301

GASKET

Gearcase

1шт.

27

CLC102732601

GASKET

Fuel Pump

1шт.
