Запчасти Case IH SCOUT XL (88.100.01) - DIA KIT, FRONT RECEIVER HITCH (88) - ACCESSORIES

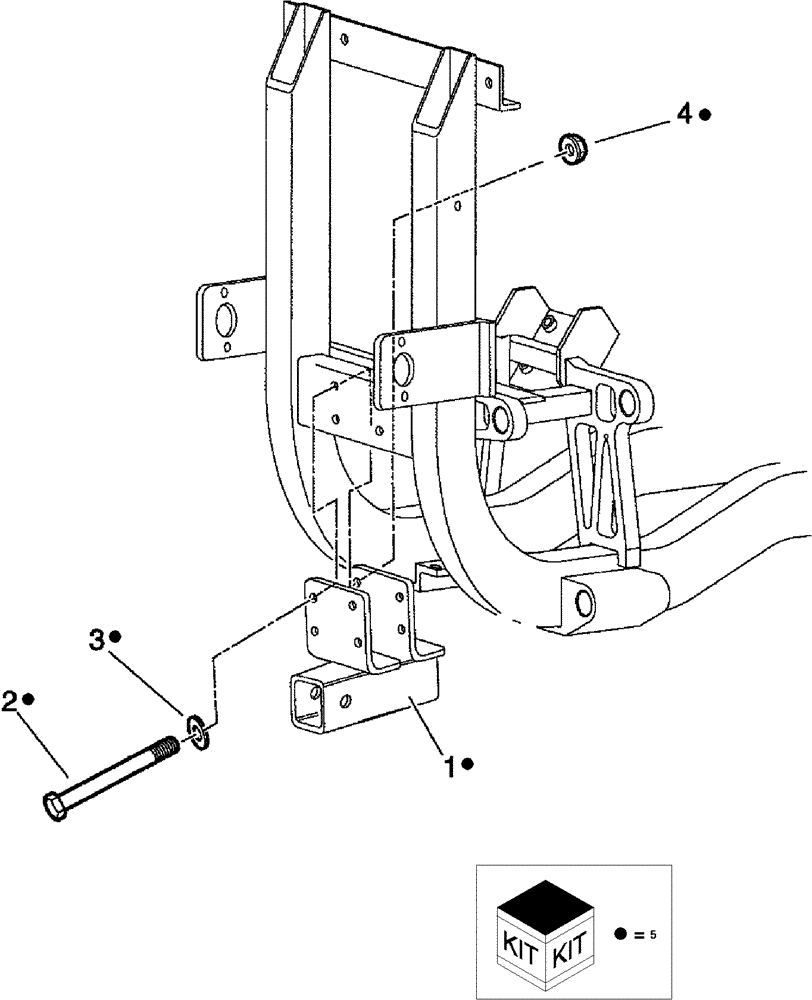

Схема запчастей Case IH SCOUT XL - (88.100.01) - DIA KIT, FRONT RECEIVER HITCH (88) - ACCESSORIES
5
5
5
5
5
2
3
1
4

Артикул

Название

Примечание

Количество

1

CLC102976901

HITCH

Front Receiver

1шт.

2

CLC102853801

BOLT

4шт.

3

CLC102718101

WASHER

4шт.

4

CLC102617201

NUT

4шт.

5

CLC103273901

DIA KIT, ADD PROD

Front Receiver Hitch, Inc. 1-4

1шт.

6

CLCAM1264101

BALL

Hitch, 1-7/8", (Not Shown)

1шт.

7

CLCAM1264401

SERVICE KIT

1-7/8", Inc. Ball Mount, Tow Ball, And Hitch Pin, (Not Shown)

1шт.

8

CLCAM1264001

BALL

Hitch, 2", (Not Shown)

1шт.

9

CLCAM1264501

DIA KIT, ADD PROD

2", Inc. Ball Mount, Tow Ball, And Hitch Pin, (Not Shown)

1шт.

10

CLCSVP316201

HITCH

Triple Ball Pintle Combo, (Not Shown)

1шт.

Выбрано товаров: 10
