(88.001.01) - DIA KIT, ENGINE BLOCK HEATER

Запчасти Case IH SCOUT XL (88.001.01) - DIA KIT, ENGINE BLOCK HEATER (88) - ACCESSORIES

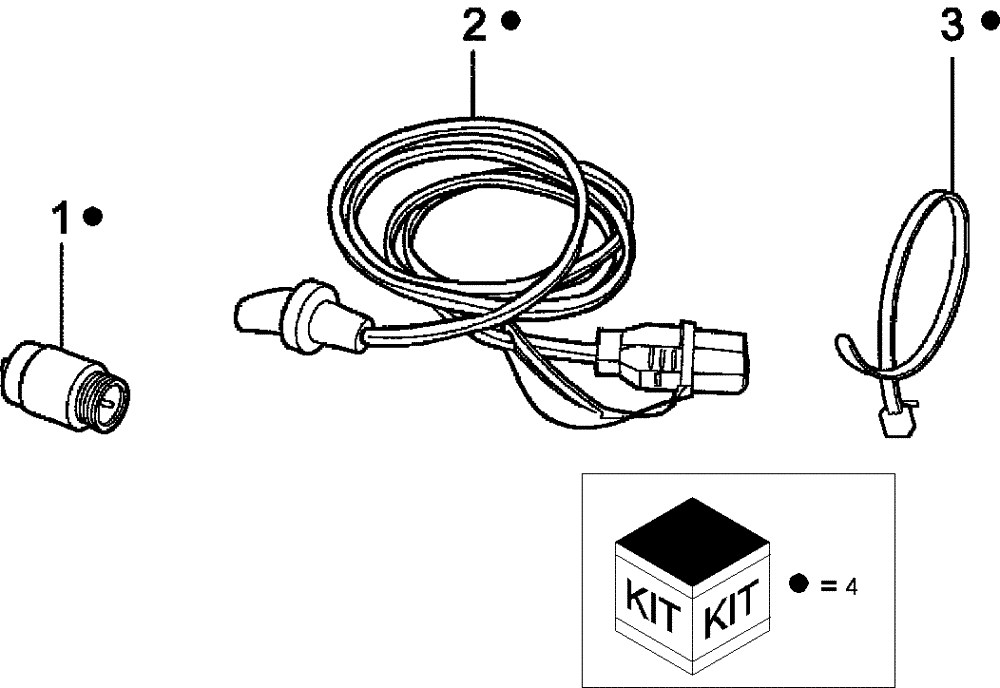

Схема запчастей Case IH SCOUT XL - (88.001.01) - DIA KIT, ENGINE BLOCK HEATER (88) - ACCESSORIES
4
4
4
1
2
3
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLCAM11264

BLOCK HEATER

1шт.

2

CLCAM1219501

ELECTRIC CABLE

Engine Block Heater

1шт.

3

CLC8639

STRAP

6шт.

4

CLCAM1219601

DIA KIT, ADD PROD

Engine Block Heater, Inc. 1-3

1шт.

5

CLCSVP345702

MODULE

Diesel Preheat, Inc. 6-8 (Not Shown)

1шт.

6

CLCSVPP343601

WIRE HARNESS

Diesel Preheat (Not Shown)

1шт.

7

CLCSVPP345601

MODULE

Diesel Preheat (Not Shown)

1шт.

8

CLCSVPP354901

LIGHT

Dash, Preheat Module (Not Shown)

1шт.
