Запчасти Case IH SCOUT XL (55.100.04) - HARNESSES, REGULATOR, IGNITION, ENGINE (55) - ELECTRICAL SYSTEMS

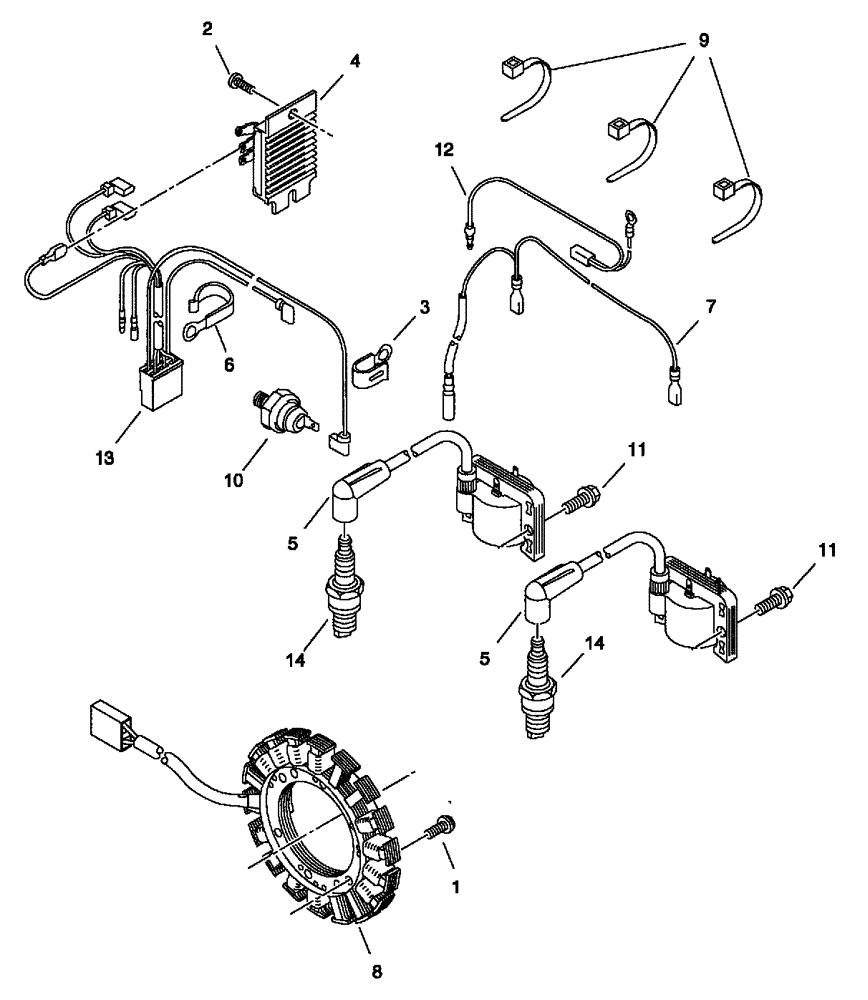

Схема запчастей Case IH SCOUT XL - (55.100.04) - HARNESSES, REGULATOR, IGNITION, ENGINE (55) - ELECTRICAL SYSTEMS
14
12
5
3
13
8
10
11
1
5
9
4
2
14
7
11
6

Артикул

Название

Примечание

Количество

1

CLC103300101

SCREW

4шт.

2

CLC1016544

SCREW

1шт.

3

CLC103299901

WIRE CLAMP

Harness

1шт.

4

CLC103000401

VOLTAGE REGULATOR

1шт.

5

CLC103000501

COIL

Ignition, Small

2шт.

6

CLC103299801

WIRE CLAMP

Ignition, Large

1шт.

7

CLC103000801

WIRE HARNESS

Regulator

1шт.

8

CLC103000901

COIL

Charging

1шт.

9

CLC103001301

BAND

Harness

3шт.

10

CLC103299701

PRESSURE SWITCH

Oil

1шт.

11

CLC103298501

FLANGE BOLT

4шт.

12

CLC103299501

WIRE HARNESS

Ignition

1шт.

13

CLC103299601

WIRE HARNESS

Engine, Main

1шт.

14

CLCAM1232301

SPARK PLUG

2шт.

Выбрано товаров: 14
