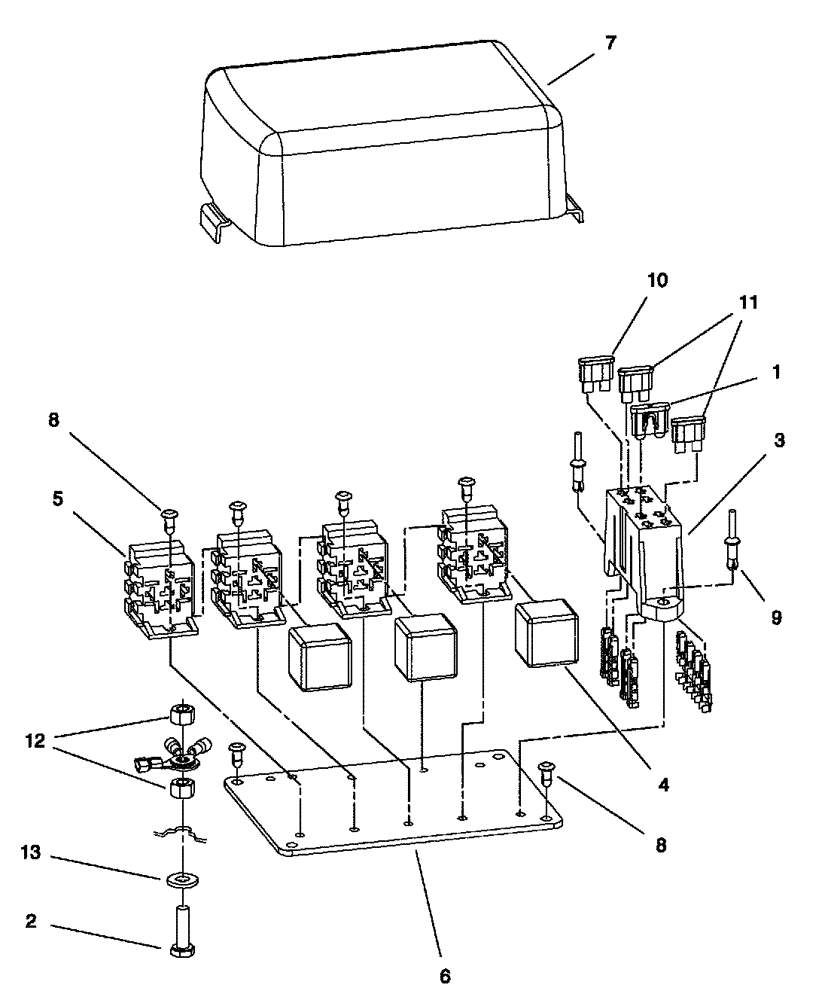

Запчасти Case IH SCOUT XL (55.100.02[02]) - ELECTRICAL COMPONENT BOX, DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

CLC1012295

FUSE

10-amp

1шт.

2

NSS

NOT SOLD SEPARAT

SCREW, 1/4-20 x .88

1шт.

3

CLC1015741

BLOCK

Fuse

1шт.

4

CLC102420201

RELAY

3шт.

5

NSS

NOT SOLD SEPARAT

CONNECTOR

4шт.

6

CLC102420401

PLATE

Electrical

1шт.

7

CLC102420501

COVER

Electrical

1шт.

8

CLC102447901

FASTENER

8шт.

9

CLC102448001

RIVET

2шт.

10

CLC102492201

FUSE

25-amp

1шт.

11

CLC102492301

FUSE

30-amp

2шт.

12

CLC1108

LOCK NUT

2шт.

13

CLC332

WASHER

1шт.
