Запчасти Case IH SCOUT XL (44.100.01) - WHEELS AND TIRES (44) - WHEELS

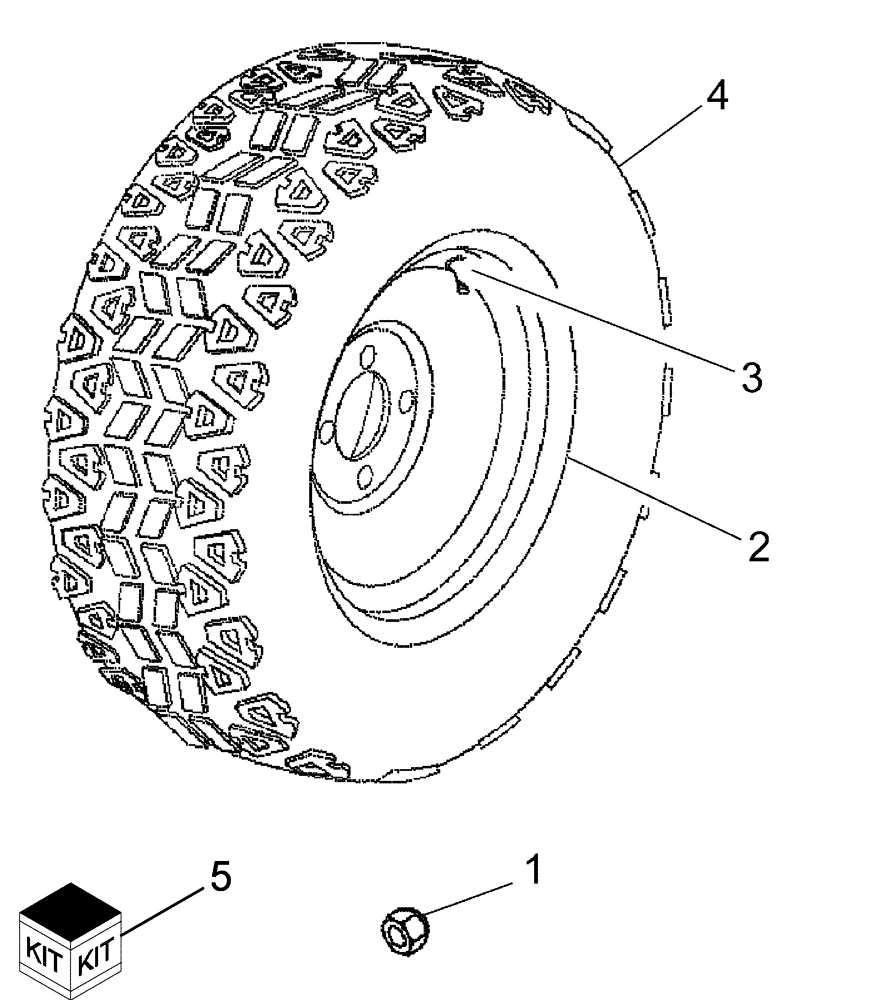

Схема запчастей Case IH SCOUT XL - (44.100.01) - WHEELS AND TIRES (44) - WHEELS
1
3
5
4
2

Артикул

Название

Примечание

Количество

1

CLC102736901

NUT

16шт.

1

CLCAM1234701

WHEEL NUT

Chrome Diamond 8, 4-Pack

4шт.

2

CLC103234503

WHEEL

All Trail, Black

1шт.

2

CLC103234504

WHEEL

All Trail, Silver

1шт.

2

CLC103525002

WHEEL

Alloy, Chrome

1шт.

3

CLC7310

VALVE STEM

1шт.

4

CLC102945701

TYRE/TIRE

Mud, Front And Rear

1шт.

4

CLC102943101

TYRE/TIRE

All Terrain, Front And Rear

1шт.

5

CLC102943807

DIA KIT, ADD PROD

Heavy Duty All Terrain Tires 25x11-12 Rear, Black Steel Wheels

1шт.

5

CLC102943809

DIA KIT, ADD PROD

Mud Tires 25x11-12 Front And Rear, Black Steel Wheels, Right Hand

1шт.

5

CLC102943808

DIA KIT, ADD PROD

Mud Tires 25x11-12 Front And Rear, Black Steel Wheels, Left Hand

1шт.

5

CLCAM1249601

DIA KIT, ADD PROD

Mud Tires 25x11-12 4 Ply Diamond 8 Alloy Wheels, Right Hand

1шт.

5

CLCAM1249701

SERVICE KIT

Mud Tires 25x11-12 4 Ply Diamond 8 Alloy Wheels, Left Hand

1шт.

5

CLCAM1234401

DIA KIT, ADD PROD

Heavy Duty Terrain Tires 25x11-12 4 Ply Diamond 8 Alloy Wheels

1шт.

5

CLC102943810

DIA KIT, ADD PROD

Heavy Duty All Terrain Tires 25x11-12 Rear, Silver Steel Wheels

1шт.

5

CLC102943812

DIA KIT, ADD PROD

Mud Tires 25x11-12 Front And Rear, Silver Steel Wheels, Right Hand

1шт.

5

CLC102943811

DIA KIT, ADD PROD

Mud Tires 25x11-12 Front And Rear, Silver Steel Wheels, Left Hand

1шт.

6

CLCAM1234601

CAP

Chrome Diamond 8 Wheel, (Not Shown)

1шт.

6

CLC103532801

CAP COVER

Plastic, Alloy Wheel, (Not Shown)

2шт.

7

CLCAM1234801

VALVE STEM

Chrome, (Not Shown)

1шт.

Выбрано товаров: 20
