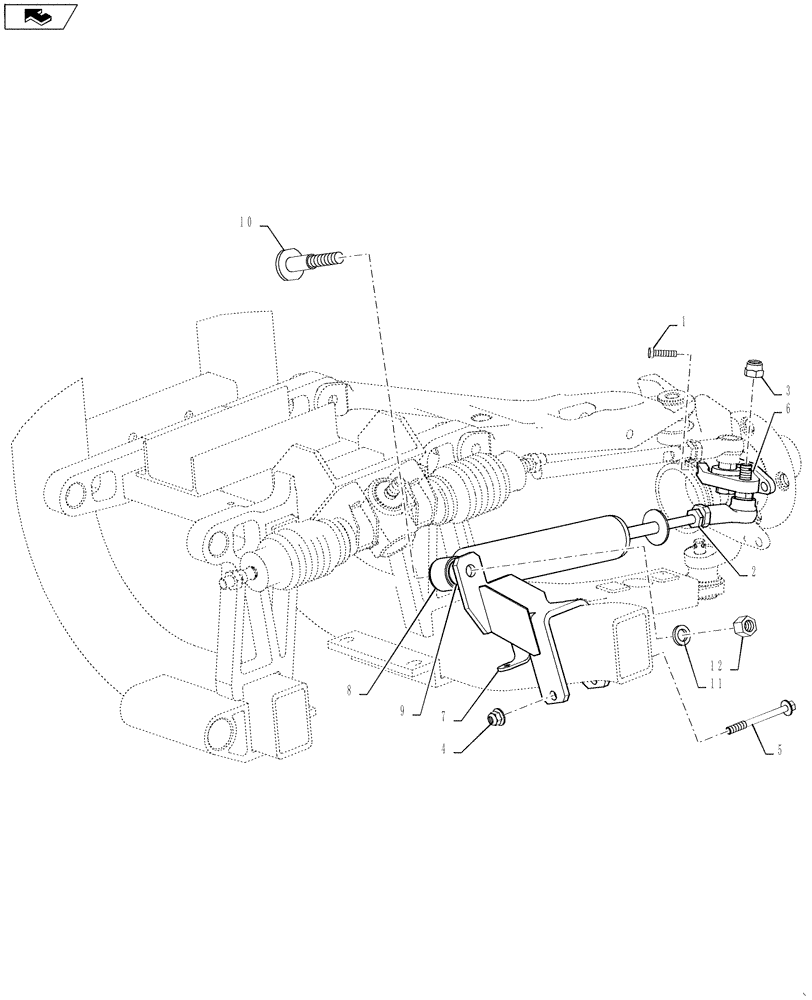

Запчасти Case IH SCOUT XL (41.216.02) - STEERING STABILIZER, MODEL YEAR 2012 (41) - STEERING

1

CLC1012769

SCREW

6mm x 25mm

1шт.

2

CLC102022601

TIE-ROD

M12 x 1.25, Right Hand

1шт.

3

CLC102022901

LOCK NUT

M12 x 1.25

1шт.

4

CLC102618601

LOCK NUT

M8 x 1.25

1шт.

5

CLC103146801

FLANGE BOLT

M8 x 1.25 x 80

1шт.

6

CLC103935401

BRACKET

Knuckle, Damper, Steering

1шт.

7

CLC103938601

BRACKET

Steering Damper

1шт.

8

CLC103939001

DAMPER

Steering, M12 x 1.25, Inc. 9-12

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER

1шт.

10

NSS

NOT SOLD SEPARAT

SHOULDER BOLT

1шт.

11

NSS

NOT SOLD SEPARAT

LOCK WASHER

1шт.

12

NSS

NOT SOLD SEPARAT

NUT

1шт.
