Запчасти Case IH SCOUT XL (41.204.020) - STEERING COLUMN (AFTER FEB 1 2011) (41) - STEERING

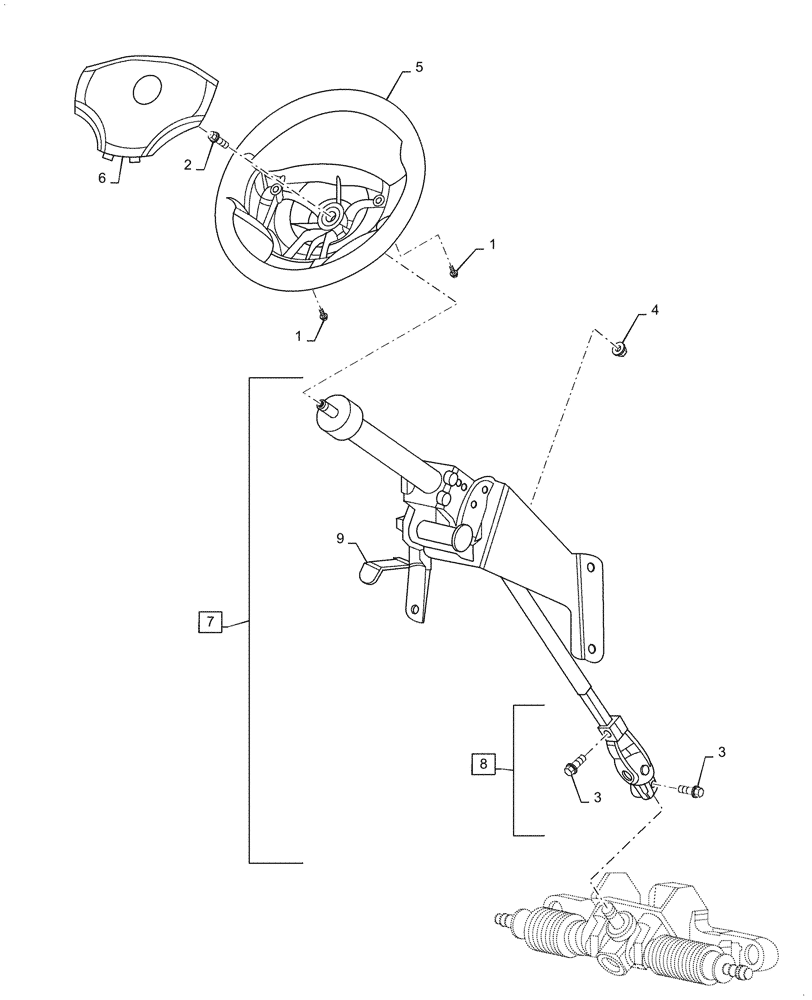

Схема запчастей Case IH SCOUT XL - (41.204.020) - STEERING COLUMN (AFTER FEB 1 2011) (41) - STEERING
8
9
2
3
3
1
7
1
4
6
5

Артикул

Название

Примечание

Количество

1

CLC101850301

SCREW

M12 - 16 x 1/2" L

1шт.

2

CLC102290120

BOLT

M10 x 20mm L

1шт.

3

CLC102298130

BOLT

M8 x 30mm L

2шт.

4

CLC102298401

NUT

Lock, M8

3шт.

5

CLC103724503

STEERING WHEEL

Assy

1шт.

6

CLC103724602

COVER

Steering Wheel

1шт.

7

CLC103859901

STEERING COLUMN

Assy, Incl 3, 8, 9

1шт.

8

CLC103810201

YOKE

Lower, Kit, Incl 3

1шт.

9

CLC103862701

HANDLE

Tilt Steering

1шт.

Выбрано товаров: 9
