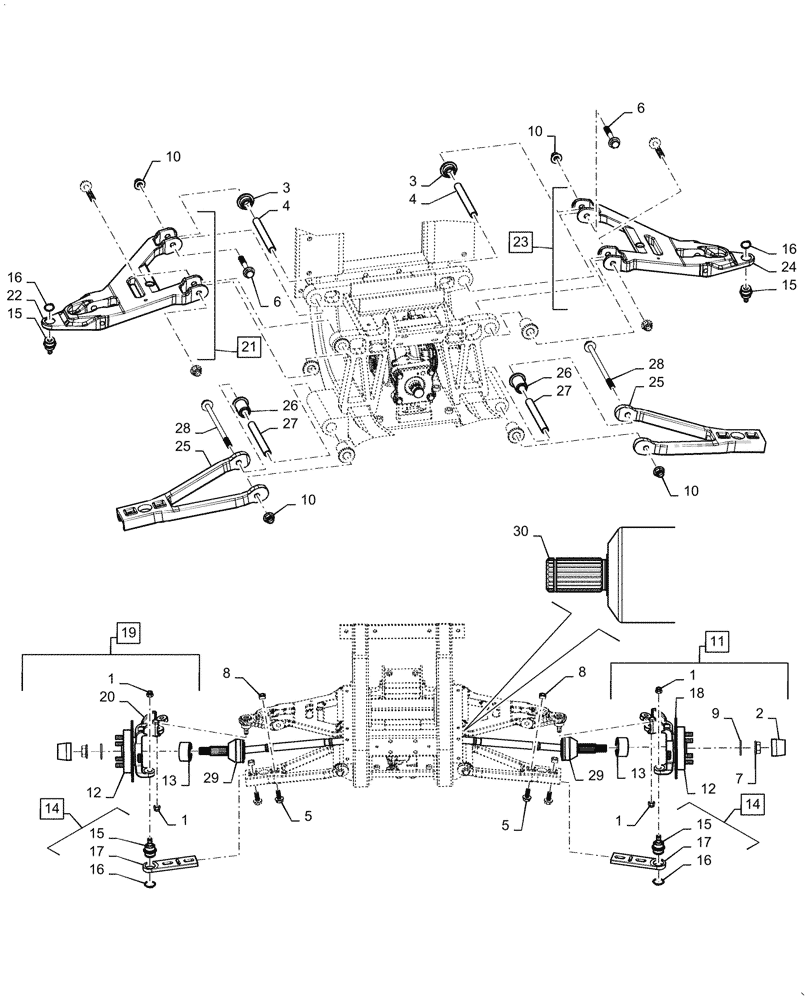

Запчасти Case IH SCOUT XL (41.101.010[02]) - FRONT SUSPENSION (AFTER AUG 15 2011) (41) - STEERING

1

CLC102022901

LOCK NUT

M12 x 1.25

4шт.

2

CLC102274101

CAP

Center, Rubber

2шт.

3

CLC102408401

BUSHING

A - Arm

8шт.

4

CLC102437001

SLEEVE

Upper

4шт.

5

CLC102490801

BOLT

M12 x 1.75 x 30mm L

4шт.

6

CLC102616301

BOLT

M12 x 1.75 x 70mm L

4шт.

7

CLC102617501

FLANGE NUT

M22 x 1.5

2шт.

8

CLC102617701

SQUARE NUT

M12 x 1.75

4шт.

9

CLC102617801

WASHER

M22

2шт.

10

CLC102620501

FLANGE NUT

M12 x 1.75, Gr 10

6шт.

11

CLC102791701

SUPPORT

Upright, LH, Incl 1, 12 - 18

1шт.

12

CLC102376605

ROTOR

Brake, Front

2шт.

13

CLC102464301

BEARING ASSY

2шт.

14

CLC102874301

ADJUSTER

Slide, Incl 15 - 17

2шт.

15

CLC102361901

BALL JOINT

4шт.

16

CLC102722301

RING

Retaining, 1-1/4" OD

4шт.

17

NSS

NOT SOLD SEPARAT

Slide Adjuster, Incl in 11, 14

2шт.

18

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 11

1шт.

19

CLC102791702

SUPPORT

Upright, RH, Incl 1, 12 - 17, 20

1шт.

20

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 19

1шт.

21

CLC102792001

ARM

A, Upper, LH, Incl 15, 16, 22

1шт.

22

CLC102927101

ARM

Upper, Wide, LH

1шт.

23

CLC102792002

ARM

A, Upper, RH, Incl 15, 16, 24

1шт.

24

CLC102927102

ARM

Upper, Wide, RH

1шт.

25

CLC102874501

ARM

A, Lower

2шт.

26

CLC103256501

BUSHING

A - Arm, Front

2шт.

27

CLC103256401

SLEEVE

Lower Arm

2шт.

28

CLC103256701

FLANGE BOLT

M12 x 1.75 x 200mm L, Gr 10

2шт.

29

CLC103762201

SHAFT

Half, Front, AWD

2шт.

30

CLC103345801

RING

Half Shaft, Hog

2шт.
