(39.100.03) - CARGO BOX

Запчасти Case IH SCOUT XL (39.100.03) - CARGO BOX (39) - FRAMES AND BALLASTING

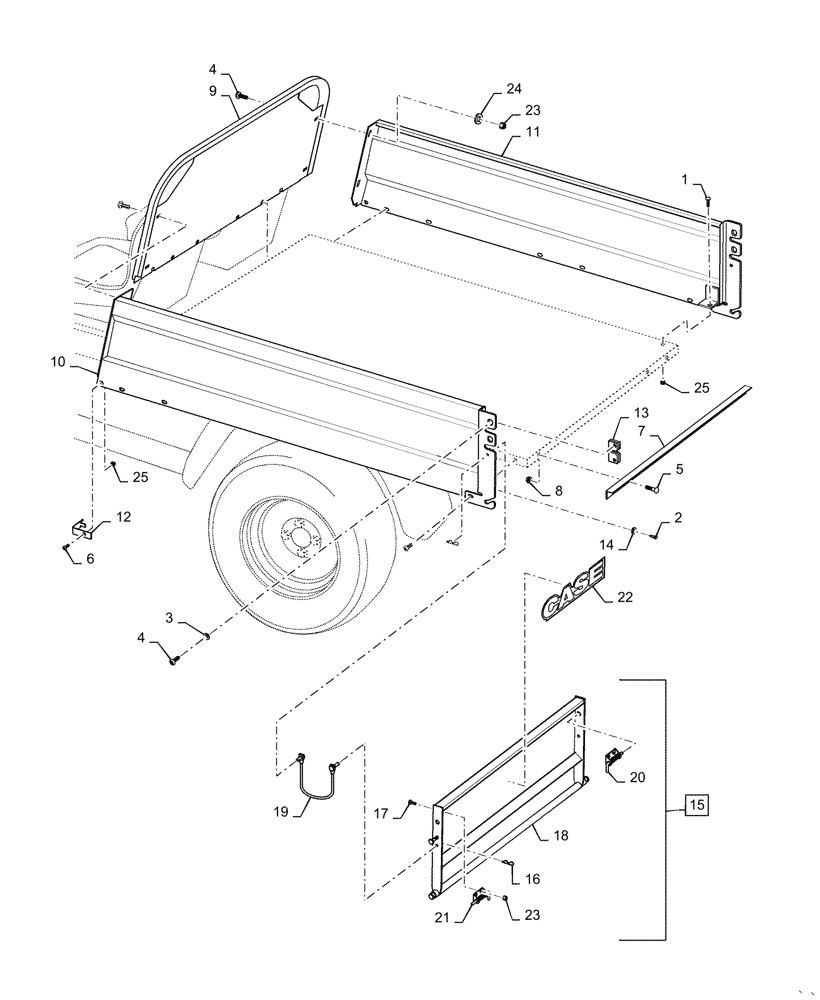

Схема запчастей Case IH SCOUT XL - (39.100.03) - CARGO BOX (39) - FRAMES AND BALLASTING
1
7
13
18
14
19
4
9
23
24
25
6
2
17
21
4
20
25
8
3
10
15
16
5
23
12
22
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC1010435

BOLT

5/16" - 18 x 1" L, Carriage

13шт.

2

CLC1010436

BUMPER

Rubber

4шт.

3

CLC1014306

WASHER

1/4" ID

4шт.

4

CLC1014415

SCREW

1/4" - 20 x 3/4" L

8шт.

5

CLC1014537

STUD

Self - Clinching

4шт.

6

CLC1015399

SCREW

5/16" - 18 x 5/64" L

18шт.

7

CLC101894304

BOX

Tailgate

1шт.

8

CLC101963401

LOCK NUT

5/16" - 18

4шт.

9

CLC102221302

PANEL

Front

1шт.

10

CLC102221402

PANEL

LH

1шт.

11

CLC102221502

PANEL

RH

1шт.

12

CLC102221701

CAP

Front Corner

2шт.

13

CLC102222001

LATCH

Slam

2шт.

14

CLC102239901

RUBBER WASHER

3/8" ID

4шт.

15

CLC102229906

TAILGATE

Assy, Incl 16 - 21, 23

1шт.

Tailgate Assy Does NOT Come W/ Decal

1шт.

16

CLC1013366

CLIP

Hair Pin

4шт.

17

CLC1014415

SCREW

1/4" - 20 x 3/4" L

4шт.

18

NSS

NOT SOLD SEPARAT

Tailgate, Incl in 15

1шт.

19

CLC102221801

STRAP

Tether Assy

2шт.

20

CLC102222101

LATCH

RH, Spring

1шт.

21

CLC102222201

LATCH

LH, Spring

1шт.

22

87595770

DECAL

CASE

1шт.

23

CLC8233

LOCK NUT

1/4" - 20, Nylon

8шт.

24

CLC332

WASHER

1/4" ID

4шт.

25

CLC7473

LOCK NUT

5/16" - 18, Nylon

31шт.
