Запчасти Case IH SCOUT XL (33.202.020[02]) - REAR BRAKE ASSY. (AFTER AUG 15 2011) (33) - BRAKES & CONTROLS

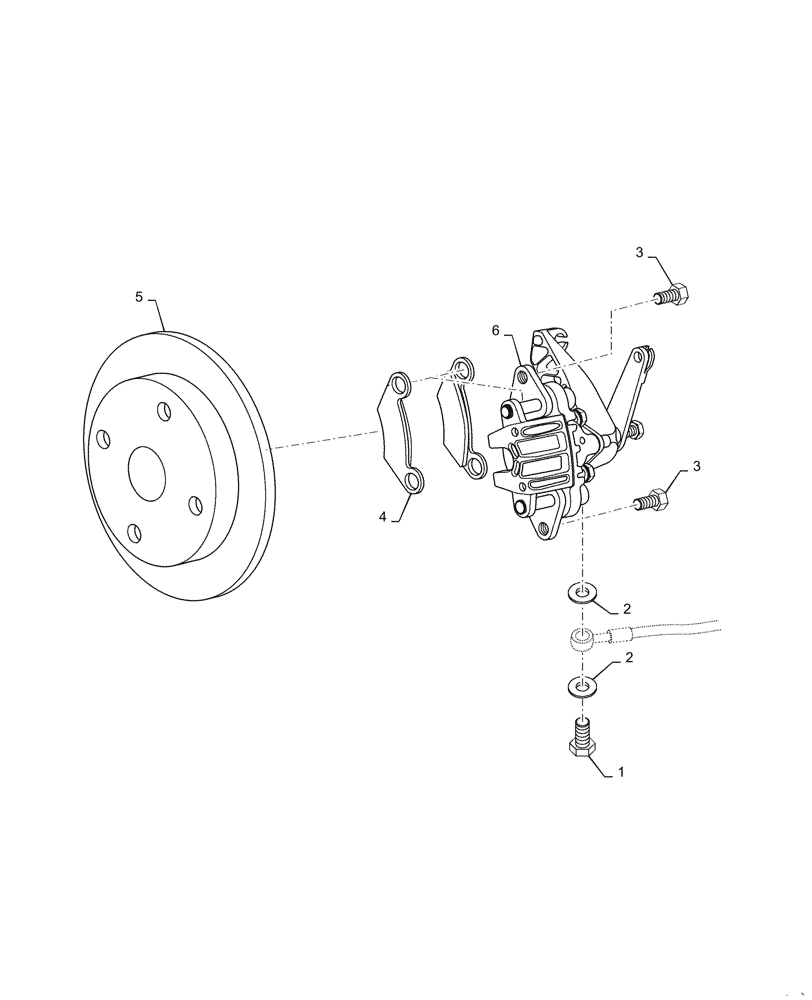

Схема запчастей Case IH SCOUT XL - (33.202.020[02]) - REAR BRAKE ASSY. (AFTER AUG 15 2011) (33) - BRAKES & CONTROLS
3
5
2
1
3
2
6
4

Артикул

Название

Примечание

Количество

1

CLC102488001

BOLT

M10 x 1 x19mm L

1шт.

2

CLC102491601

WASHER

Crush, M10

4шт.

3

CLC102493301

BOLT

3/8" - 24 x 3/4" L

4шт.

4

CLC103160101

KIT

Rear Brake Pads

1шт.

Contains All Rear Brake Pads

1шт.

5

CLC103077501

ROTOR

Brake, Rear

2шт.

6

CLC103523602

BRAKE CALIPER

LH

1шт.

Includes Brake Pads

1шт.

6

CLC103523702

BRAKE CALIPER

RH

1шт.

Includes Brake Pads

1шт.

Выбрано товаров: 10
