Запчасти Case IH SCOUT XL (33.202.020[01]) - REAR BRAKE ASSY. (BEFORE AUG 15 2011) (33) - BRAKES & CONTROLS

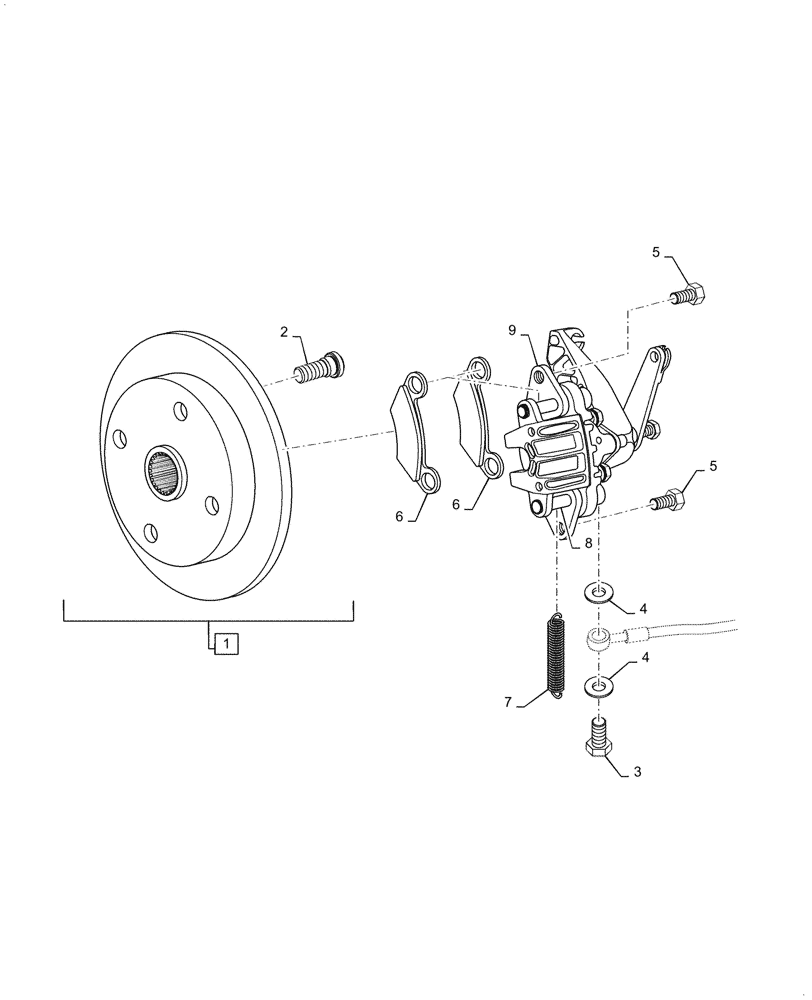

Схема запчастей Case IH SCOUT XL - (33.202.020[01]) - REAR BRAKE ASSY. (BEFORE AUG 15 2011) (33) - BRAKES & CONTROLS
9
6
5
4
2
3
7
6
1
8
4
5

Артикул

Название

Примечание

Количество

1

CLC102376602

ROTOR

Brake, Assy, Incl 2

2шт.

2

CLC102475801

STUD

Wheel Lug

4шт.

3

CLC102488001

BOLT

Banjo, M10 x 1 x 19mm L

2шт.

4

CLC102491601

WASHER

M10, Crush

4шт.

5

CLC102493301

BOLT

3/8" - 24 x 3/4" L

4шт.

6

CLC102714001

SERVICE KIT

Brake Pad

1шт.

Includes All Rear Brake Pads

1шт.

7

CLC103418701

BRAKE SPRING

Caliper, Return

2шт.

8

CLC103418801

PIN

Slide, 7/16" L

4шт.

9

CLC103712801

BRAKE CALIPER

LH

1шт.

Includes Brake Pads

1шт.

9

CLC103712802

BRAKE CALIPER

RH

1шт.

Includes Brake Pads

1шт.

Выбрано товаров: 13
