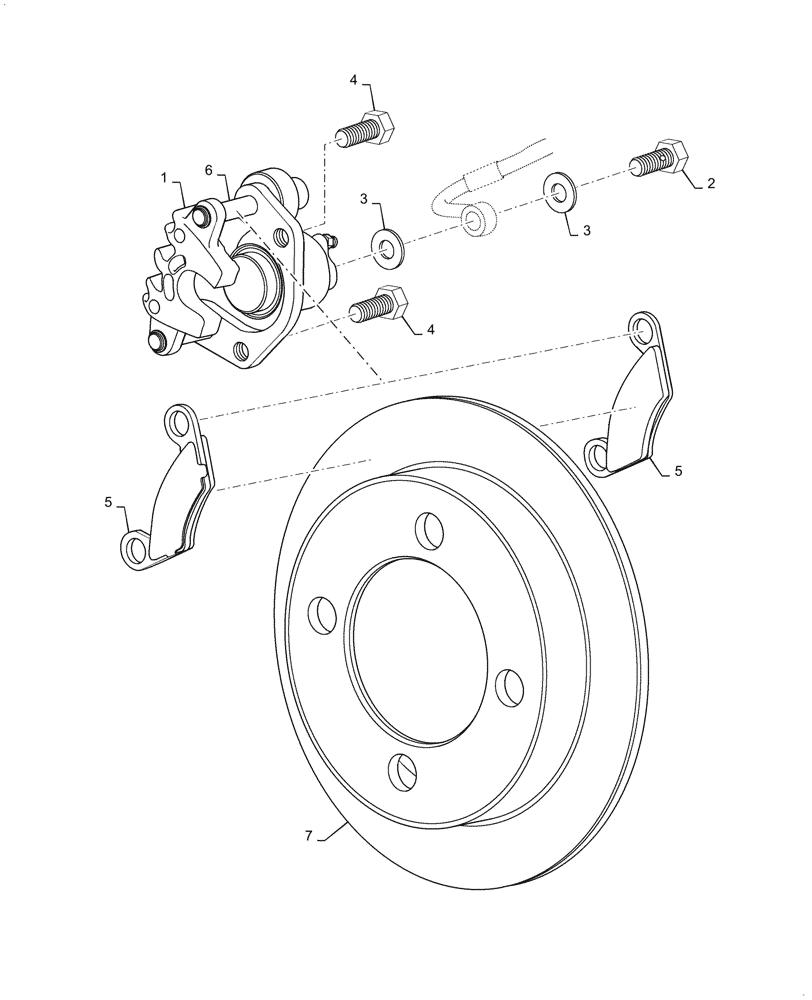

Запчасти Case IH SCOUT XL (33.202.010[01]) - FRONT BRAKE ASSY. (BEFORE JAN 30 2015) (33) - BRAKES & CONTROLS

1

CLC102367601

BRAKE CALIPER

Front

2шт.

2

CLC102488001

BOLT

M10 x 1 x 19mm L

2шт.

3

CLC102491601

WASHER

Crush, M10

4шт.

4

CLC102493301

BOLT

Caliper Mounting

4шт.

5

CLC102714001

SERVICE KIT

Front Brake Pad

1шт.

6

CLC103418801

PIN

Brake Pad Mounting

2шт.

7

CLC102376605

ROTOR

Brake, Front

2шт.
