(33.110.030) - TRANSMISSION PARKING BRAKE (AFTER JAN 30 2015)

Запчасти Case IH SCOUT XL (33.110.030) - TRANSMISSION PARKING BRAKE (AFTER JAN 30 2015) (33) - BRAKES & CONTROLS

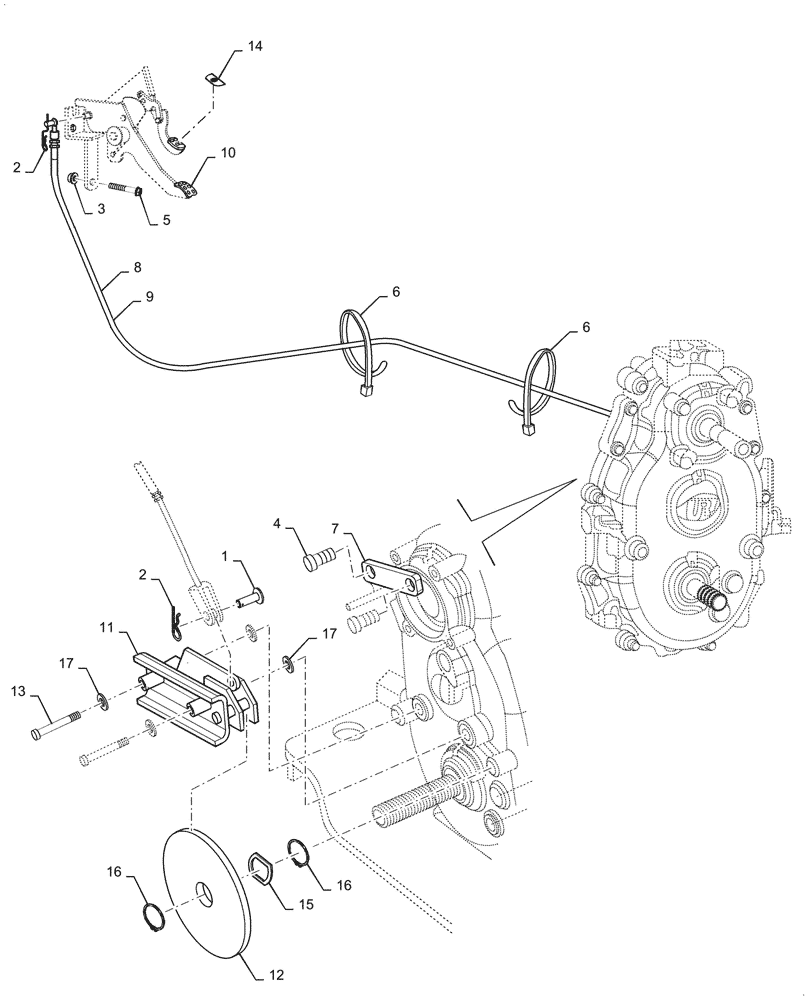

Схема запчастей Case IH SCOUT XL - (33.110.030) - TRANSMISSION PARKING BRAKE (AFTER JAN 30 2015) (33) - BRAKES & CONTROLS
17
9
12
8
6
14
7
6
17
5
4
11
1
10
16
15
3
16
13
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC101082903

CLEVIS PIN

5/16" OD x 1" L

1шт.

2

CLC102292801

PIN

Bow Tie Locking

2шт.

3

CLC102298401

NUT

M8

3шт.

4

CLC102490101

BOLT

M10 x 1.5 x 20mm L

2шт.

5

CLC102618301

BOLT

M8 x 1.25 x 65mm L

3шт.

6

CLC102629001

ELASTIC TIE ROD

8" L

2шт.

7

CLC103968401

BRACKET

Park Brake

1шт.

8

CLC103968501

CABLE

Park Brake, 2 passenger, 1500/1550

1шт.

9

CLC103968601

CABLE

Park Brake, 4 passenger, 1700/1500

1шт.

10

CLC103968701

PEDAL

Foot, Park Brake

1шт.

11

CLC103968801

CALIPER

Mechanical, Park Brake

1шт.

12

CLC103968902

ROTOR

Park Brake

1шт.

13

CLC103983301

BOLT

M10 x 1.5 x 90mm L

2шт.

14

CLC103986501

DECAL

Park Brake

1шт.

15

CLC104005601

SPRING

31/32" ID

1шт.

16

CLC104005701

SNAP RING

63/64" ID

2шт.

17

CLC96741046

WASHER

M10

4шт.
