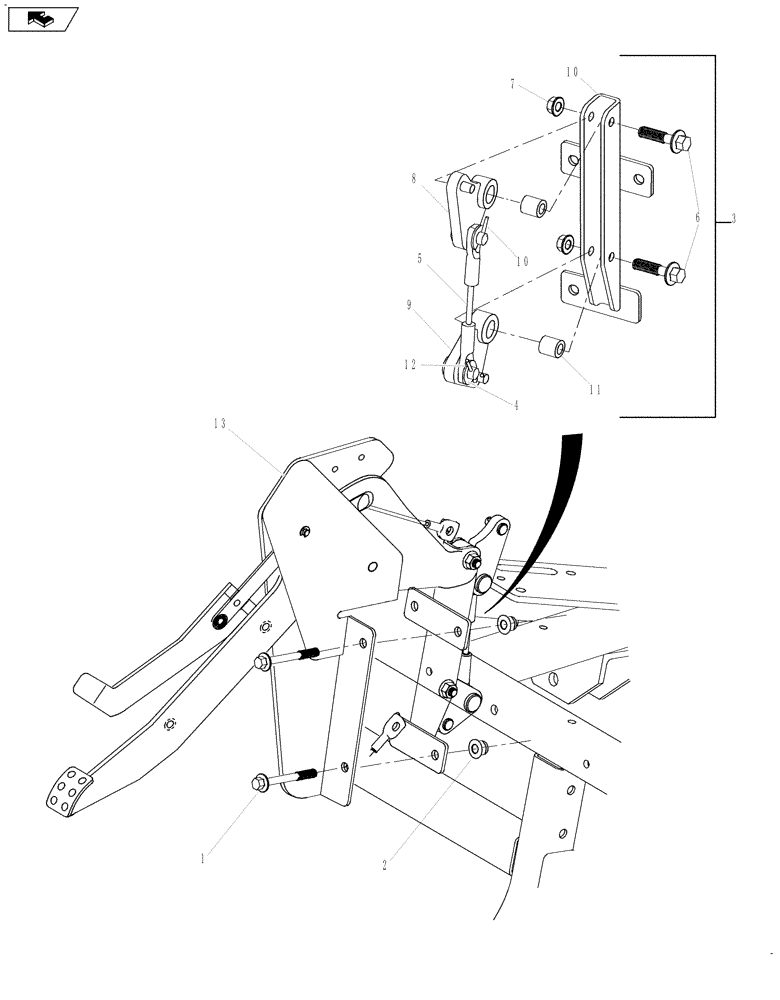

Запчасти Case IH SCOUT XL (33.110.02) - PARK BRAKE PEDAL ASSEMBLY (33) - BRAKES & CONTROLS

1

CLC102618301

BOLT

M8 x 1.25 x 65

3шт.

2

CLC102618601

LOCK NUT

M8 x 1.25 Nylon

3шт.

3

CLC102751501

BRACKET

Park Brake, Inc. 4-12

1шт.

4

CLC102323501

WASHER

3/8

2шт.

5

CLC102716001

CABLE

Crank, Bell

1шт.

6

CLC102741501

FLANGE BOLT

M8 x 1.25 x 35, Gr 10.9

2шт.

7

CLC102741601

FLANGE NUT

M8 x 1.25, Gr 10

2шт.

8

CLC102751301

BELLCRANK

Upper

1шт.

9

NSS

NOT SOLD SEPARAT

BELLCRANK, Lower

1шт.

10

CLC103305001

BRACKET

Bellcrank, Park Brake

1шт.

11

CLC103305101

SPACER

Pivot, Park Brake

2шт.

12

CLC1035

PIN

3/32 x 1

2шт.

13

CLC103505401

PEDAL

Park Brake

1шт.

14

CLC1014807

LIMIT SWITCH

Park Brake, Micro (Not Shown)

1шт.
