(33.110.01[02]) - PARK BRAKE SYSTEM - 2-SEATER

Запчасти Case IH SCOUT XL (33.110.01[02]) - PARK BRAKE SYSTEM - 2-SEATER (33) - BRAKES & CONTROLS

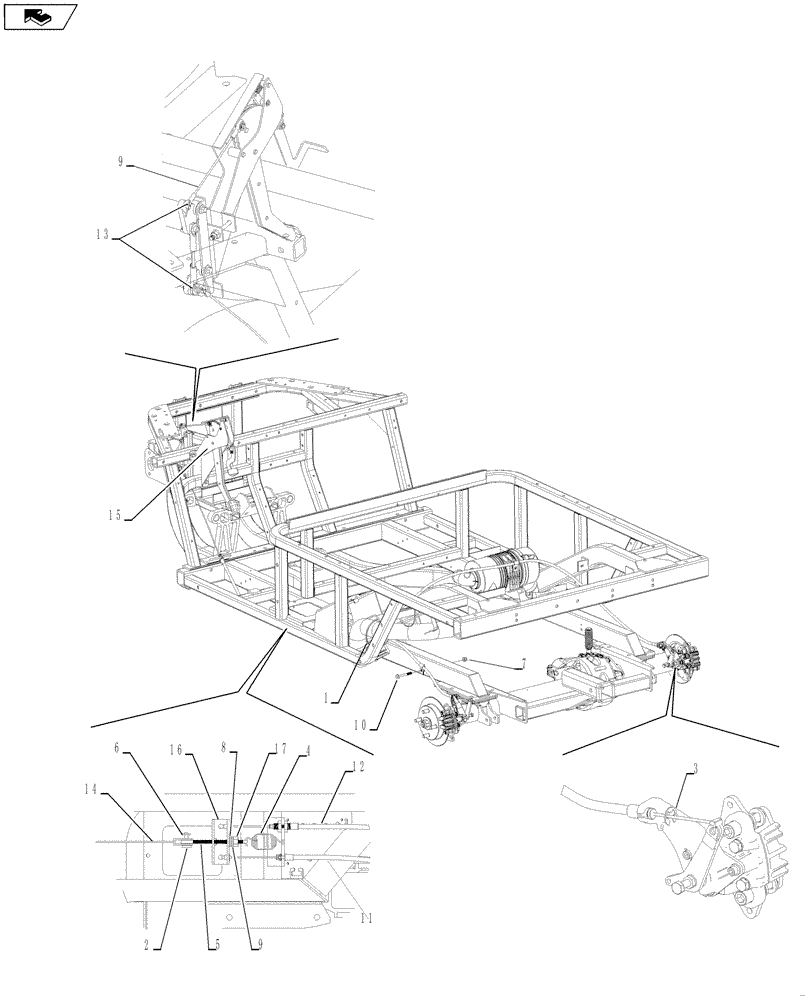

Схема запчастей Case IH SCOUT XL - (33.110.01[02]) - PARK BRAKE SYSTEM - 2-SEATER (33) - BRAKES & CONTROLS
14
17
7
home
15
1
9
16
5
2
12
11
4
6
8
13
9
10
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC8639

STRAP

2шт.

2

CLC101082903

CLEVIS PIN

5/16 x 1

2шт.

3

CLC1011779

SNAP RING

E, 1/2

2шт.

4

CLC1013531

SPRING

Brake Return

1шт.

5

CLC101953101

ROD

Equalizer

1шт.

6

CLC102292801

PIN

Bow Tie Locking, .072

2шт.

7

CLC102298401

NUT

M8

4шт.

8

CLC102551901

CUP WASHER

5/16

1шт.

9

CLC102552001

CONE WASHER

5/16

1шт.

10

CLC102618301

BOLT

M8 x 1.25 x 65

4шт.

11

CLC102763301

CABLE

Noncoated, Park Brake, Left

1шт.

12

CLC102763401

CABLE

Noncoated, Park Brake, Right

1шт.

13

CLC103500901

BRACKET

Cable, Park Brake

1шт.

14

CLC103505301

CABLE

Main, Park Brake

1шт.

15

CLC103505401

PEDAL

Park Brake

1шт.

16

CLC103535001

BRACKET

Equalizer

1шт.

17

CLC1242

NUT

5/16-18

2шт.
