Запчасти Case IH SCOUT XL (27.106.01[02]) - REAR DIFFERENTIAL (AFTER AUG 15 2011) (27) - REAR AXLE SYSTEM

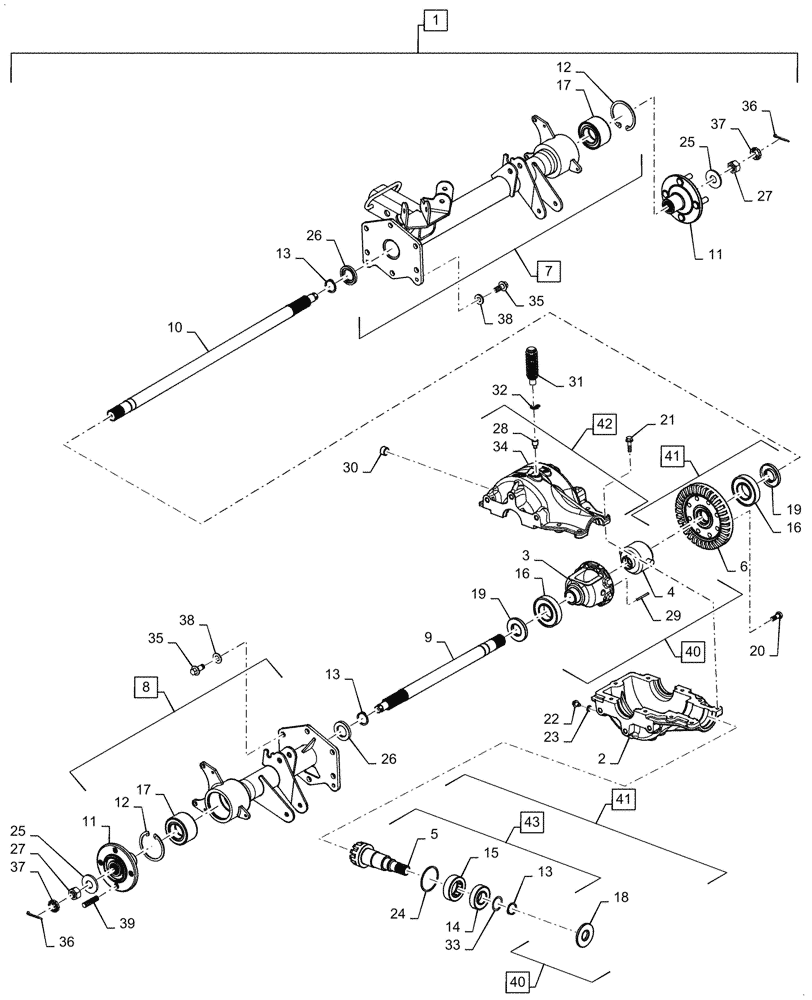

Схема запчастей Case IH SCOUT XL - (27.106.01[02]) - REAR DIFFERENTIAL (AFTER AUG 15 2011) (27) - REAR AXLE SYSTEM
27
11
8
16
33
29
2
14
24
22
25
32
23
20
17
37
41
4
7
31
3
25
15
19
43
42
10
35
40
30
19
1
21
35
16
9
13
27
36
38
11
38
34
12
28
40
41
12
26
13
18
17
39
6
13
36
5
37
26

Артикул

Название

Примечание

Количество

1

CLC103843901

REAR AXLE

Assy, Incl 2 - 43

1шт.

AWD, 4 - Link

1шт.

2

CLC102449101

GEAR

Case Lower

1шт.

3

CLC102961301

HOUSING

Differential

1шт.

4

NSS

NOT SOLD SEPARAT

Locker, Nongrease Spacer, Incl in 1, 40

1шт.

5

CLC102463101

PINION

Gear, 10T

1шт.

6

CLC102762601

GEAR

Ring, 33T

1шт.

7

CLC103922801

REAR AXLE

LH, Housing, Incl 12, 17

1шт.

8

CLC103922901

REAR AXLE

RH, Housing, Incl 12, 17

1шт.

9

CLC102463501

AXLE

RH

1шт.

10

CLC102463601

AXLE

LH

1шт.

11

CLC103146203

HUB

Rear Wheel, Incl 39

2шт.

12

CLC102463801

RING

Snap, Rear Hub

2шт.

13

CLC102463901

RING

Retaining

3шт.

14

CLC102464001

BALL BEARING

Pinion Gear

1шт.

15

CLC102464101

NEEDLE BEARING

Pinion Gear

1шт.

16

CLC102464201

BALL BEARING

Axle, Rear

2шт.

17

CLC102464301

BEARING ASSY

Rear Hub

2шт.

18

CLC102464401

SEAL

25mm ID x 62mm OD x 7mm Thk

1шт.

19

CLC102464501

SEAL

30mm ID x 62mm OD x 8mm Thk

2шт.

20

CLC102693201

SCREW

M10 x 25mm L

8шт.

21

CLC102693301

SCREW

M8 x 35mm L

9шт.

22

CLC102693401

PLUG

3/8" - 16

1шт.

23

CLC102693501

WASHER

3/8" ID x 5/8" OD x 1/16" Thk

1шт.

24

CLC102693601

WASHER

2-3/8" ID x 2-5/8" OD x 1/16" Thk

1шт.

25

CLC102672301

WASHER

49mm OD x 4mm Thk

2шт.

26

CLC103879501

WASHER

30.3mm ID x 60.5mm OD

2шт.

27

CLC102672401

NUT

Rear Wheel Hub, Locking Cap

2шт.

28

CLC102694001

VENT

Upper

1шт.

29

CLC102961401

PIN

4mm OD x 35mm L

1шт.

30

CLC102694201

PLUG

1/12" - 14

1шт.

31

CLC102694301

BELLOWS

Vent, Upper Housing

1шт.

32

CLC102694401

HOSE CLAMP

Upper Housing Vent

1шт.

33

CLC102694502

SHIM

Pinion Gear, Incl 3 Shims

1шт.

34

NSS

NOT SOLD SEPARAT

Upper Gearcase, Incl in 1, 42

1шт.

35

CLC102694701

SCREW

M12 x 1.75 x 30mm L

12шт.

36

CLC102694801

PIN

5/32" x 1-1/4" L

2шт.

37

CLC102276001

LOCK NUT

M20 x 1.5

2шт.

38

CLC102672201

WASHER

1-1/16" OD x 3/64" Thk

12шт.

39

CLC103951501

STUD

1/2" - 20

8шт.

40

CLC103871801

DIFF CARRIER & GEARS

Assy, Incl 3, 4, 16, 18, 19, 29

1шт.

41

CLC102765801

REPAIR KIT

Rear Axle Gear, Incl 6, 16, 18, 19, 43

1шт.

42

CLC102765301

CASE

Case, Upper, Incl 28, 34

1шт.

43

CLC102765701

PINION

Assy, Incl 5, 13 - 15, 24, 33

1шт.

Выбрано товаров: 44
