Запчасти Case IH SCOUT XL (27.106.01[01]) - REAR DIFFERENTIAL (BEFORE AUG 15 2011) (27) - REAR AXLE SYSTEM

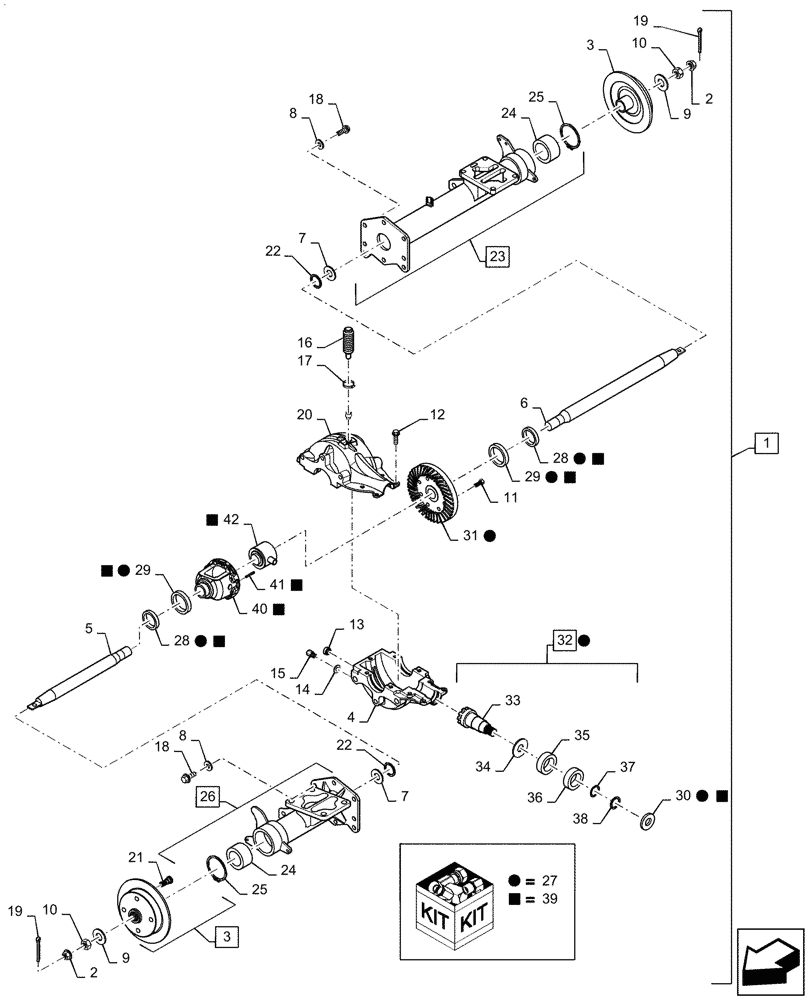

Схема запчастей Case IH SCOUT XL - (27.106.01[01]) - REAR DIFFERENTIAL (BEFORE AUG 15 2011) (27) - REAR AXLE SYSTEM
31
18
11
27
39
1
27
39
42
34
27
8
26
25
3
33
27
39
39
7
19
40
36
22
2
9
39
9
13
27
20
12
27
37
19
39
23
21
39
27
8
16
10
39
38
4
30
24
15
17
10
5
39
28
39
29
32
41
6
29
2
24
14
35
27
22
18
25
28
3
7
27

Артикул

Название

Примечание

Количество

1

CLC102831501

DIFFERENTIAL ASSY

Rear, Incl 2 - 42

1шт.

2

CLC102276001

LOCK NUT

Cap

2шт.

3

CLC102376604

ROTOR

Rear, Incl 21

2шт.

4

CLC102449101

GEAR

Case, Lower Housing

1шт.

5

CLC102463501

AXLE

RH

1шт.

6

CLC102463601

AXLE

LH

1шт.

7

CLC102672101

WASHER

30mm ID x 51mm OD

2шт.

8

CLC102672201

WASHER

1-1/16" OD x 3/64" Thk

12шт.

9

CLC102672301

WASHER

4mm ID x 49mm OD

2шт.

10

CLC102672401

NUT

M20 x 1.5

2шт.

11

CLC102693201

SCREW

M10 x 25mm L

8шт.

12

CLC102693301

SCREW

M8 x 35mm L

9шт.

13

CLC102693401

PLUG

3/8" - 16

1шт.

14

CLC102693501

WASHER

3/8" ID x 5/8" OD x 39/64" Thk

1шт.

15

CLC102694201

PLUG

1/12" - 14

1шт.

16

CLC102694301

BELLOWS

Vent, Upper Housing

1шт.

17

CLC102694401

HOSE CLAMP

1шт.

18

CLC102694701

SCREW

M12 x 1.75 x 30mm L

12шт.

19

CLC102694801

PIN

5/32" x 1-1/4" L

2шт.

20

CLC102449201

GEAR

Case, Upper Housing

1шт.

21

CLC102475801

STUD

Wheel Lug

8шт.

22

CLC102463901

RING

Retaining

2шт.

23

CLC102765501

TUBE

LH, Axle, Incl 24, 25

1шт.

24

CLC102464301

BEARING ASSY

RH, Axle Tube

2шт.

25

CLC102463801

RING

RH, Axle Tube, Snap

2шт.

26

CLC102765401

TUBE

RH, Axle, Incl 24, 25

1шт.

27

CLC102765801

REPAIR KIT

Rear Axle Gear, Incl 28 - 32

1шт.

28

CLC102464501

SEAL

Rear Axle Gear

2шт.

29

CLC102464201

BALL BEARING

Rear Axle Gear

2шт.

30

CLC102464401

SEAL

Pinion Gear

1шт.

31

NSS

NOT SOLD SEPARAT

Ring Gear, 33T, Incl in 27

1шт.

32

NSS

NOT SOLD SEPARAT

Pinion Assy, Incl 33 - 38

1шт.

33

NSS

NOT SOLD SEPARAT

Pinion Gear, Incl in 32

1шт.

34

CLC102693601

WASHER

1шт.

35

CLC102464101

NEEDLE BEARING

Pinion Gear

1шт.

36

CLC102464001

BALL BEARING

Pinion Gear

1шт.

37

CLC102694502

SHIM

Pinion Gear

1шт.

38

CLC102463901

RING

Axle Shaft

3шт.

39

CLC102961501

DIFF CARRIER & GEARS

Rear, Incl 28 - 30, 40 - 42

1шт.

40

CLC102961301

HOUSING

Rear Differential

1шт.

41

CLC102961401

PIN

Differential Locker

1шт.

42

NSS

NOT SOLD SEPARAT

Locker Assy, Non - Grease Spacer, Incl in 39

1шт.

Выбрано товаров: 42
