(88.100.03) - DIA KIT, SEALED CVT

Запчасти Case IH SCOUT (88.100.03) - DIA KIT, SEALED CVT (88) - ACCESSORIES

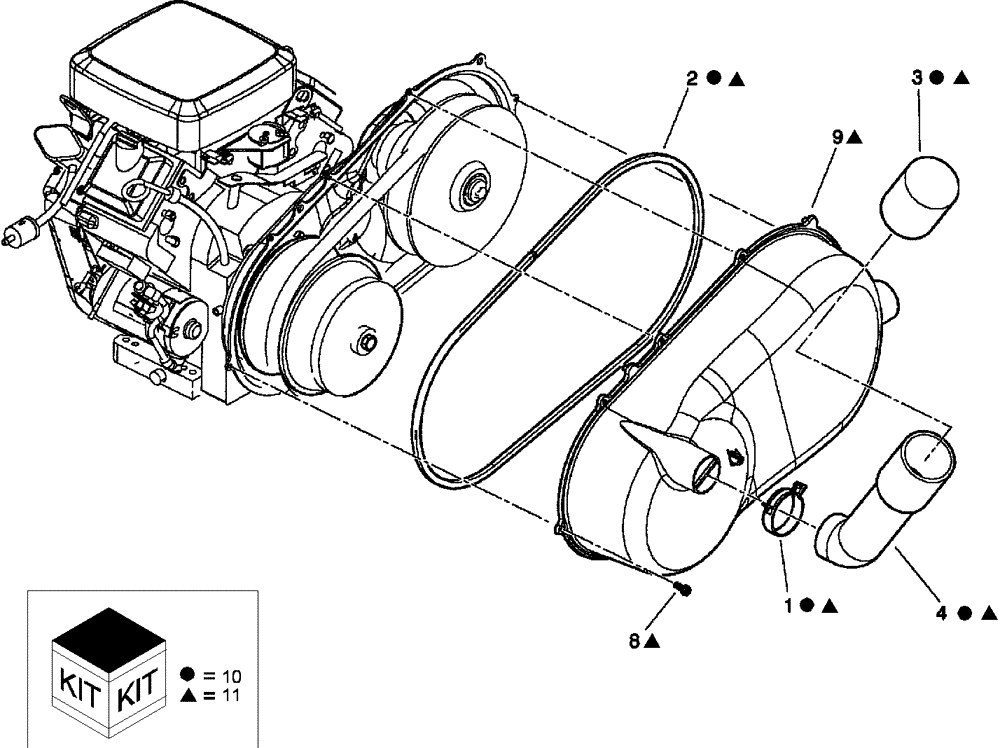

Схема запчастей Case IH SCOUT - (88.100.03) - DIA KIT, SEALED CVT (88) - ACCESSORIES
10
11
10
11
11
10
8
2
3
11
11
11
9
4
1
11
10
11
10
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC102411210

CLAMP

1шт.

2

CLC102481302

GASKET

CVT Cover

1шт.

3

CLC102628001

COVER

CVT Inlet Filter

1шт.

4

CLC103449101

HOSE

CVT Inlet

1шт.

5

CLC103572201

CONE WASHER

(Not Shown)

4шт.

6

CLC103572701

WASHER

(Not Shown)

4шт.

7

CLC103576601

SCREW

(Not Shown)

4шт.

8

CLC102296716

SCREW

8шт.

9

CLC103447501

COVER

Outer CVT

1шт.

10

CLC103589001

DIA KIT, ADD PROD

Sealed CVT, No Cover, Inc. 1-7

1шт.

11

CLC103589002

DIA KIT, ADD PROD

Sealed CVT, With Cover, Inc. 1-9

1шт.
