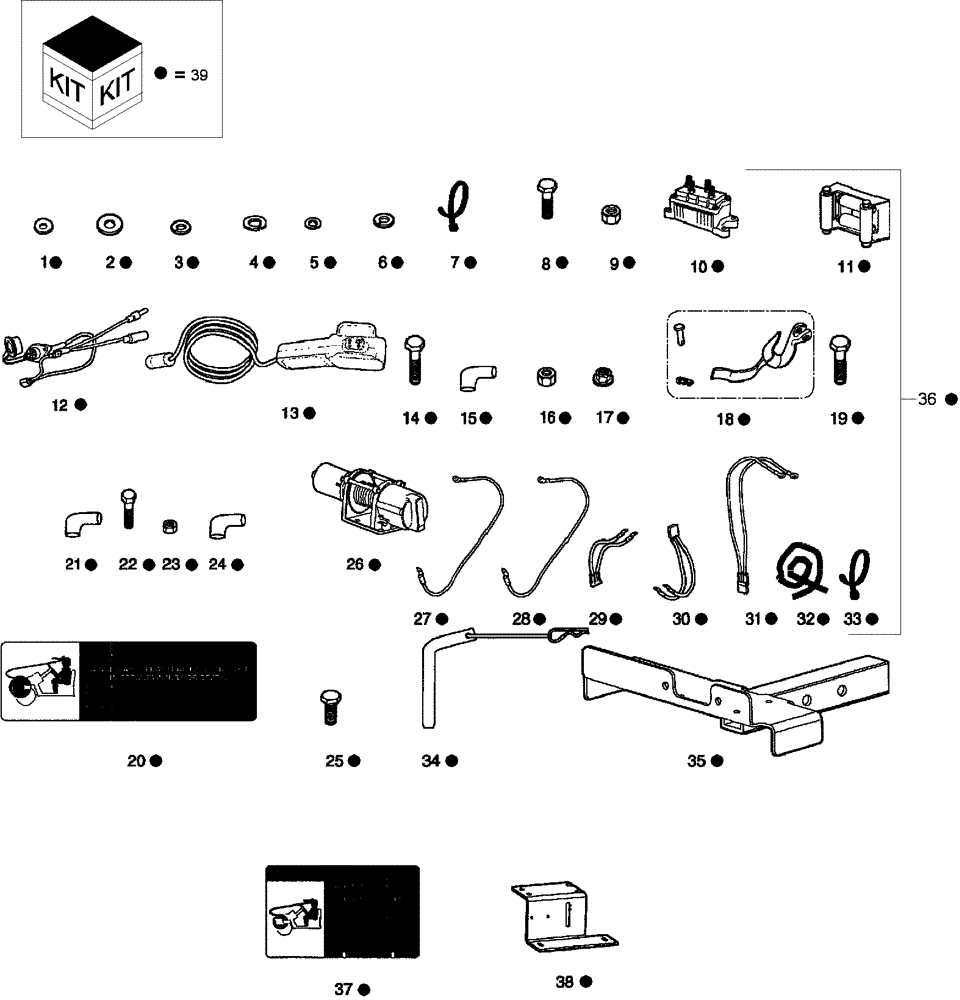

Запчасти Case IH SCOUT (88.100.01) - DIA KIT, WINCH (88) - ACCESSORIES

1

CLC183

WASHER

2шт.

2

CLC332

WASHER

4шт.

3

CLC357

WASHER

2шт.

4

CLC451

LOCK WASHER

8шт.

5

CLC1016

LOCK WASHER

2шт.

6

CLC7174

WASHER

4шт.

7

CLC8639

STRAP

22шт.

8

CLC95934550

BOLT

2шт.

9

CLC102288801

NUT

2шт.

10

CLC102673401

RELAY

12VDC, Winch

1шт.

11

CLC102673501

ROLLER

1шт.

12

CLC102673601

SOCKET

Winch Remote Control

1шт.

13

CLC102673701

REMOTE CONTROL

Winch, 10 - Foot

1шт.

14

CLC103403901

SCREW

4шт.

15

NSS

NOT SOLD SEPARAT

BOOT, Electric Terminal

6шт.

16

NSS

NOT SOLD SEPARAT

NUT, Hex, M6x1

8шт.

17

NSS

NOT SOLD SEPARAT

NUT, Flanged Hex, M6

2шт.

18

NSS

NOT SOLD SEPARAT

HOOK, 5/16-in Clevis Slip With Strap

1шт.

19

NSS

NOT SOLD SEPARAT

NUT, Hex, M6x1.25x1

4шт.

20

CLC102231601

DECAL

Warning, Winch Cable

1шт.

21

NSS

NOT SOLD SEPARAT

BOOT, Electric Terminal

4шт.

22

NSS

NOT SOLD SEPARAT

SCREW, M5x0.8x20

2шт.

23

NSS

NOT SOLD SEPARAT

NUT, M5x0.8

2шт.

24

NSS

NOT SOLD SEPARAT

BOOT, Electric Terminal

4шт.

25

CLC102296716

SCREW

2шт.

26

NSS

NOT SOLD SEPARAT

WINCH ASSEMBLY

1шт.

27

CLC103618901

ELECTRICAL WIRE

WIRE 6-Gauge Red, 2464 mm

1шт.

28

CLC103618801

ELECTRICAL WIRE

WIRE 6-Gauge Black, 2591 mm

1шт.

29

NSS

NOT SOLD SEPARAT

HARNESS, 20-in

1шт.

30

NSS

NOT SOLD SEPARAT

HARNESS, 48-in

1шт.

31

NSS

NOT SOLD SEPARAT

HARNESS, 120-in

1шт.

32

CLC101576801

CONDUIT

1шт.

33

CLC102349501

CABLE TIE

CABLE STRAP

20шт.

34

CLC102718301

PIN

Receiver

1шт.

35

CLC103212301

BRACKET MONITOR EQUI

Winch

1шт.

36

CLC103394801

WINCH

Inc. 1-19, 21-24, 26-33

1шт.

37

CLC103582401

WARNING DECAL

Winch Cable

1шт.

38

CLC103585401

BRACKET

1шт.

39

CLC103576401

DIA KIT, ADD PROD

Winch, Inc. 1-38

1шт.
