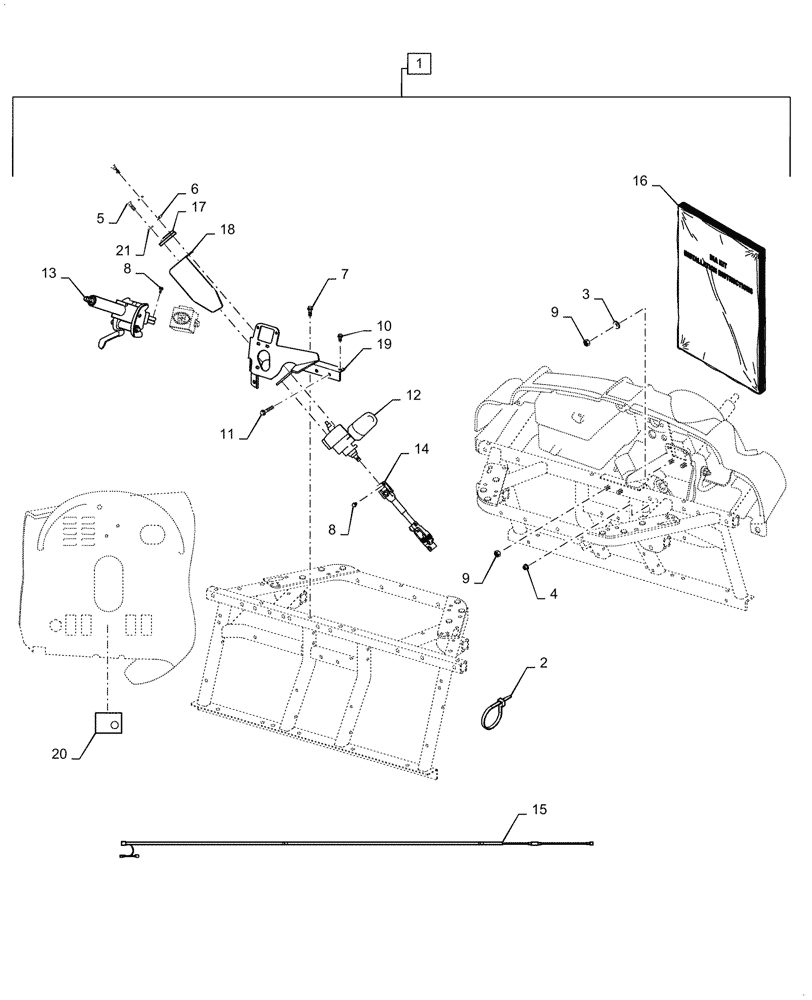

Запчасти Case IH SCOUT (88.041.01) - DIA KIT, POWER STEERING KIT (88) - ACCESSORIES

1

CLCSVP302502

DIA KIT, ADD PROD

AWD Power Steering Kit, Incl 2 - 21

1шт.

2

CLC8639

STRAP

Tie, 11" L

10шт.

3

CLC1011578

WASHER

5/16" ID

3шт.

4

CLC96704416

SERRATED NUT

M8 x 1.25

1шт.

5

CLC96705587

BOLT

M8 x 1.25 x 30mm L

3шт.

6

CLC102045801

CLAMP

P

1шт.

7

NSS

NOT SOLD SEPARAT

Screw, M8 x 1.25 x 30mm L, Incl in 1

1шт.

8

CLC102298130

BOLT

M8 x 30mm L

2шт.

9

CLC102298401

NUT

M8

5шт.

10

CLC102298720

BOLT

M8 x 1.25 x 20mm L

1шт.

11

CLC102618301

BOLT

M8 x 1.25 x 65mm L

2шт.

12

NSS

NOT SOLD SEPARAT

Power Steering Kit, Incl in 1

1шт.

13

CLCSVP300101

STEERING COLUMN

Upper

1шт.

14

CLCSVP300102

STEERING COLUMN

Lower

1шт.

15

CLCSVP300601

WIRE HARNESS

Power Steering

1шт.

16

NSS

NOT SOLD SEPARAT

Power Steering Install Kit, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Bearing Support Bracket, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Power Steering Unit Cover, Incl in 1

1шт.

19

CLCSVPP302201

BRACKET

Steering

1шт.

20

CLCSVPP333001

DECAL

Power Steering Indicator

1шт.

21

CLC7174

WASHER

5/16" ID

3шт.
